Built for today’s demanding ORs

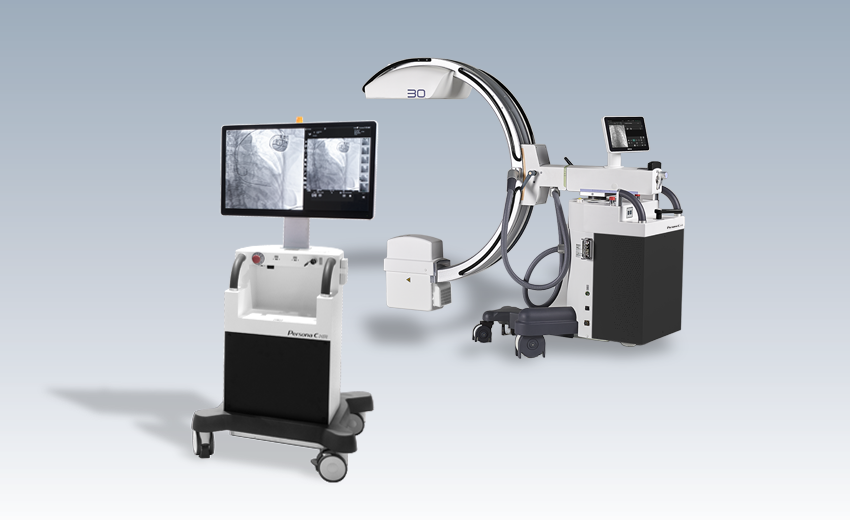

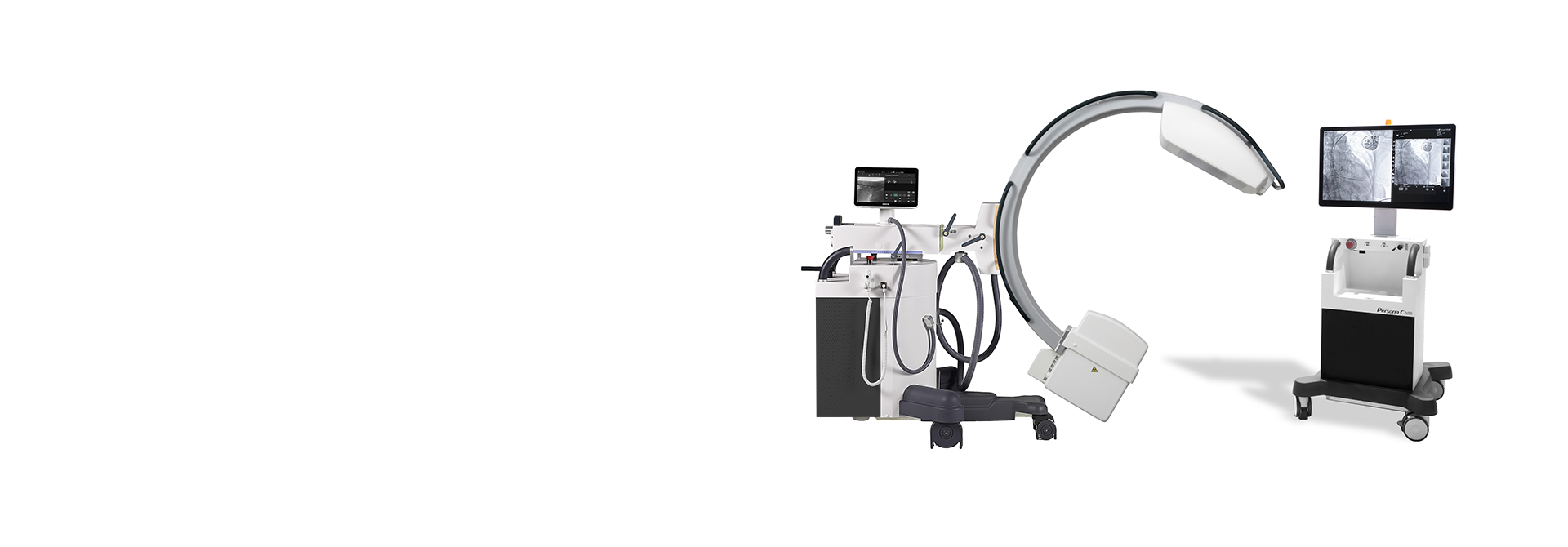

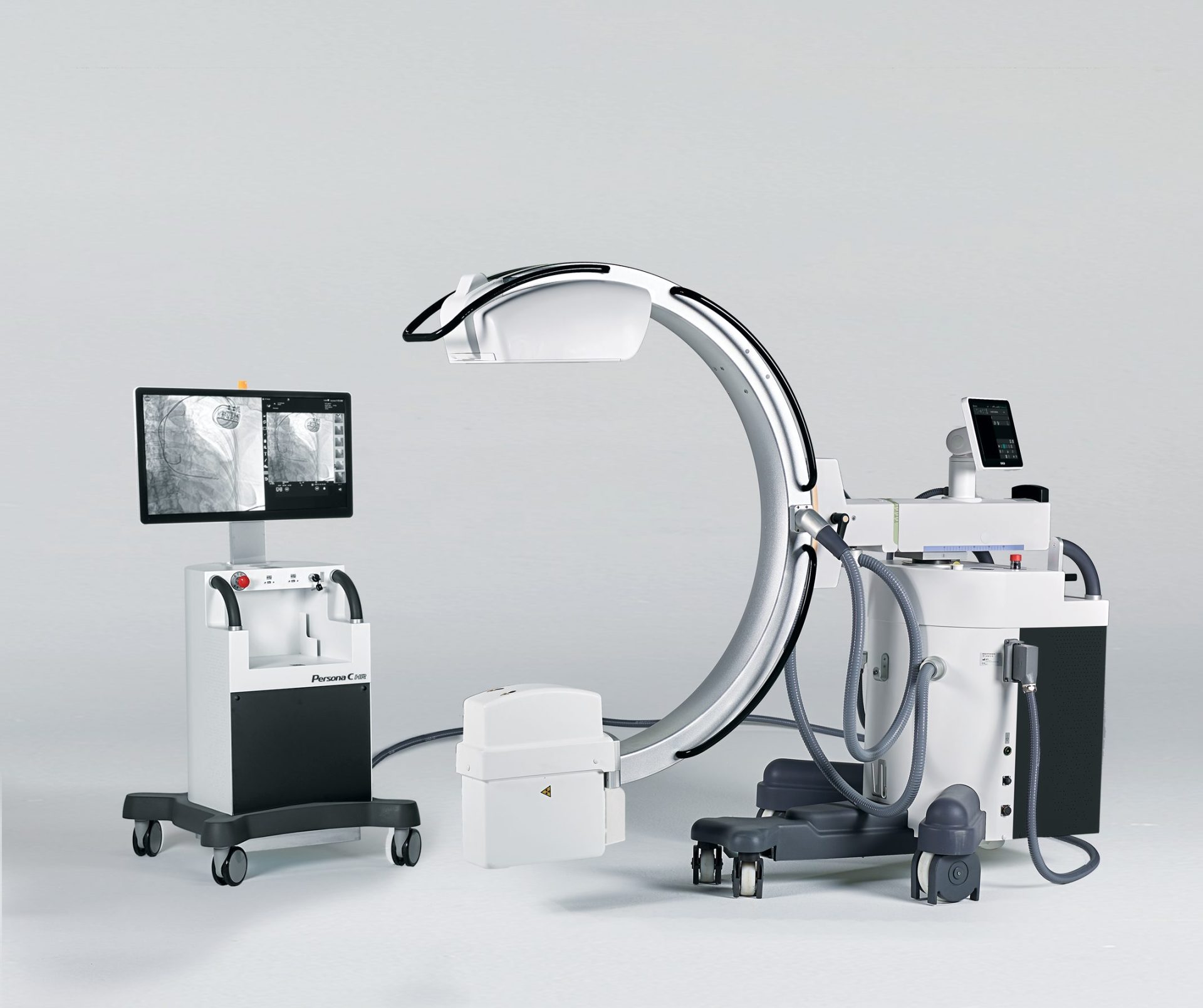

The Persona C-HR mobile C-arm combines high-power performance, ultra-low-dose imaging, and surgeon-friendly control—all in a lightweight, spacious design. Featuring a powerful 25 kW generator, active cooling, high resolution IGZO detector, 30 fps fluoroscopy, and Radiography (snapshot) modes, it’s built to handle your most challenging vascular, orthopedic, and spine procedures.
Compact Design: Largest opening (82cm) and nearly 200 lbs lighter than other systems in its class. This large diameter, lightweight mobile C-arm enables easy access to the operating procedure. Fast, accurate positioning on patient and effortless gliding. Easy to move from one room to another.
Agile flexibility: Maneuverability is light and easy with unhindered access to the operating area. Perfectly balanced C-arm orbital and angular rotation responds intuitively to operator touch and feel. Fast re-positioning with brake/axis color coding. Easy lift front wheels designed to overcome obstacles.
Absolute Operability: Full image control from any position with multi-touch console and live imaging. Operator always has direct control over the surgical procedure.

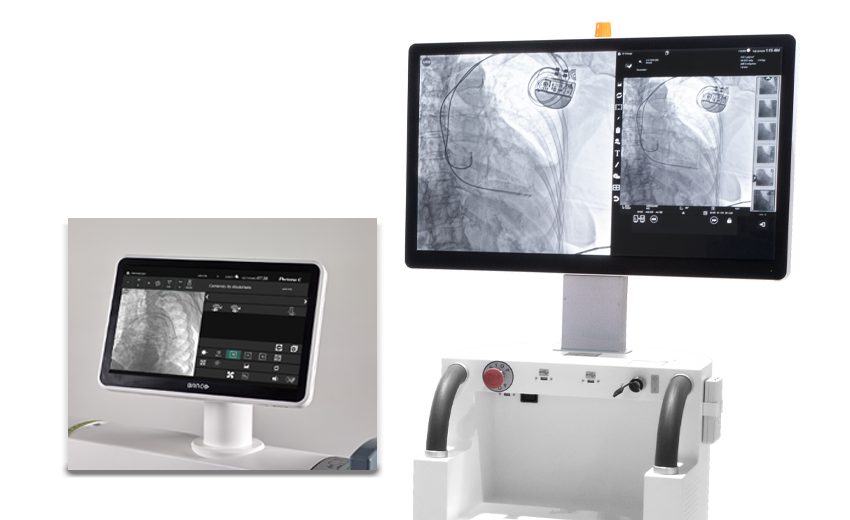

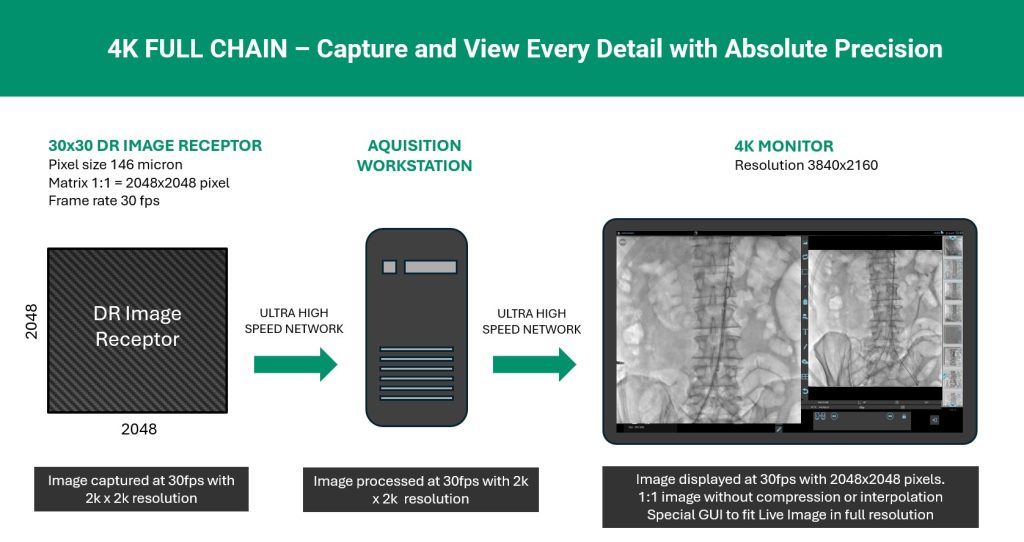

Large 32 inch 4k touchscreen display: Adjustable height and viewing articulation for fast, ultra-sharp, high resolution detail and user-friendly real-time guidance. Provides large images and thumbnails and fast, easy image and document call-up and management.
Surgeon’s Console: Always within reach and directly linked to the surgical procedure. Live or saved images are always shown together with control commands (select, edit, move, send, drag, compress, reduce, expand). Simply touch the icon to enable the function.
C-Arm mounted Operator Console: Technologist/operator console is always within reach and directly linked to the procedure.

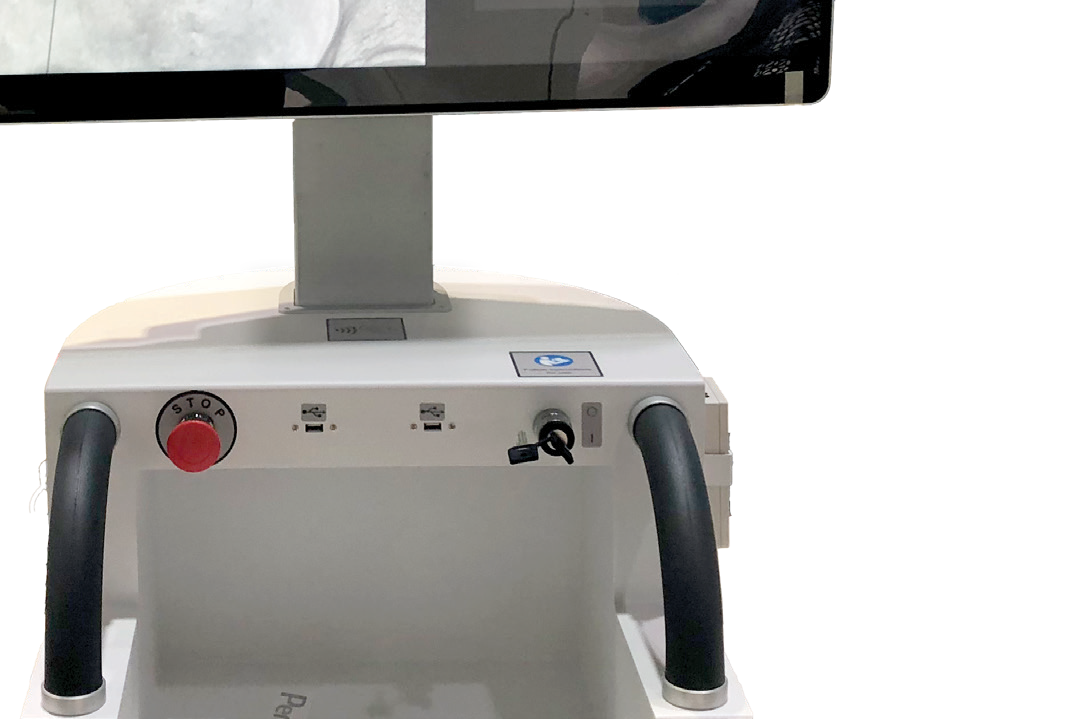

Simplified Connectivity: Convenient I/O ports for simplified IT network integration.

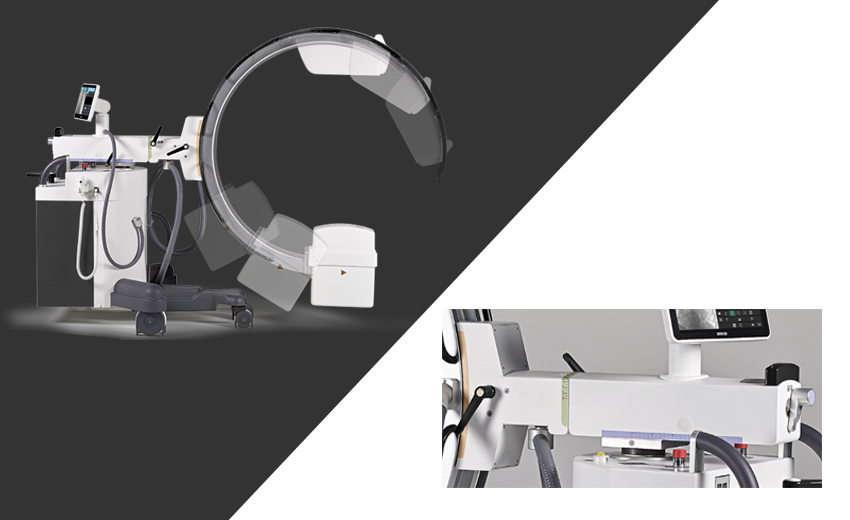

Wide Orbital Rotation: Vast orbital rotation range (from +65 ° to –95°) makes for easy oblique projections without having to move the stand around the operating table.

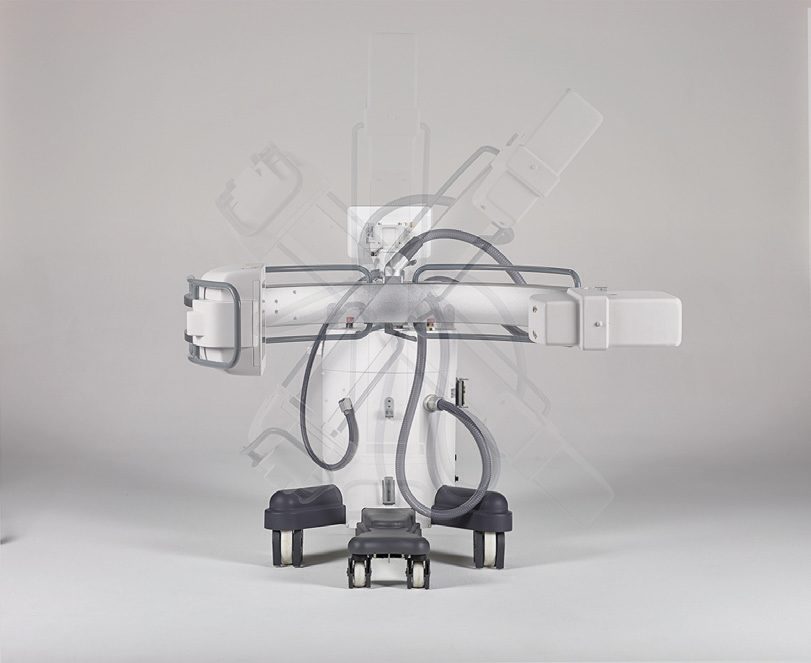

Extensive Angular Rotation: Precise movements and wide angles of more than +/- 275° around and in front of the patient.

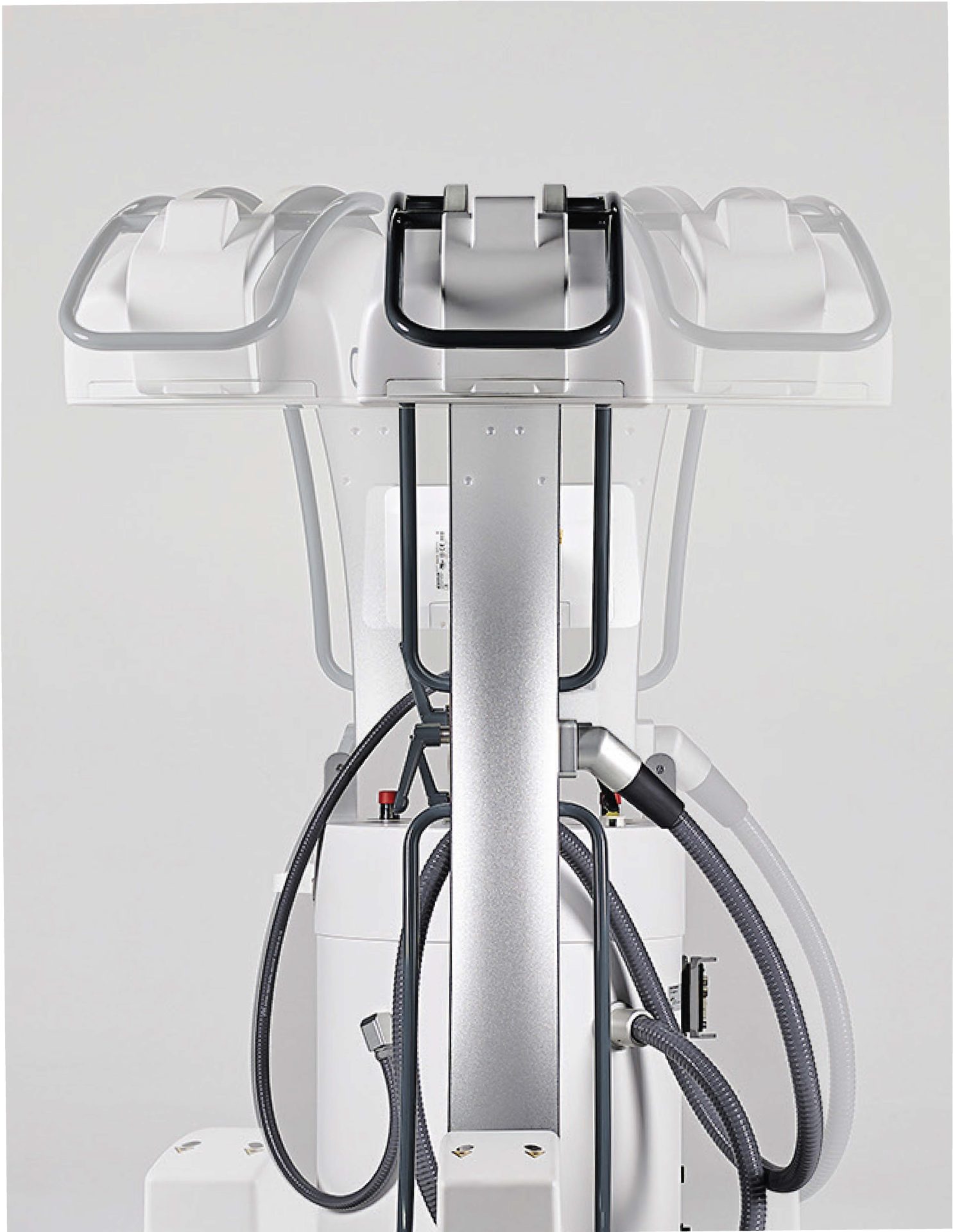

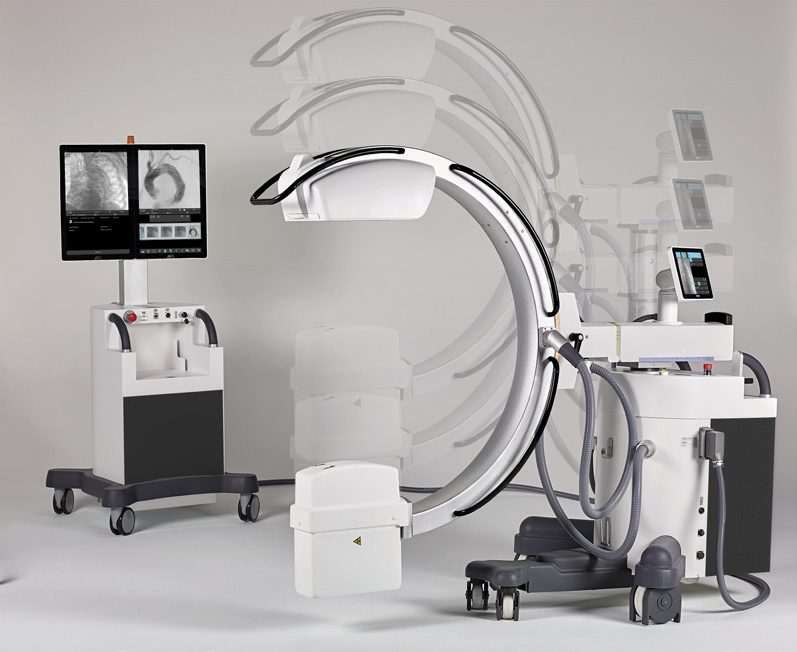

Generous Up/Down Movement: Operator comfort is key: the C-arm has a large range of vertical movement (18in, 450mm).
Color-coded Brake-Axis: Fast, intuitive setup and repositioning.

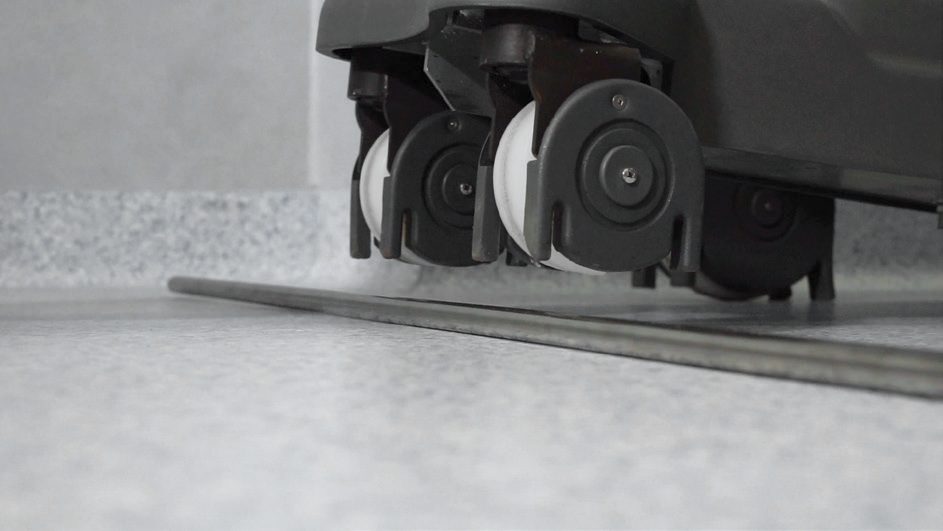

Easy-lift Front Wheels: Safely navigate over cords and floor transitions.
Removable 8:1 grid for low dose pediatric surgery and grid-less procedures
High sensitivity IGZO detector: 30x30cm Indium Gallium Zinc Oxide (IGZO) detector provides higher sensitivity and lower electronic noise than conventional detectors for clearer images at lower doses—ideal for detailed fluoroscopy in complex procedures. Removable 8:1 grid for low dose applications.

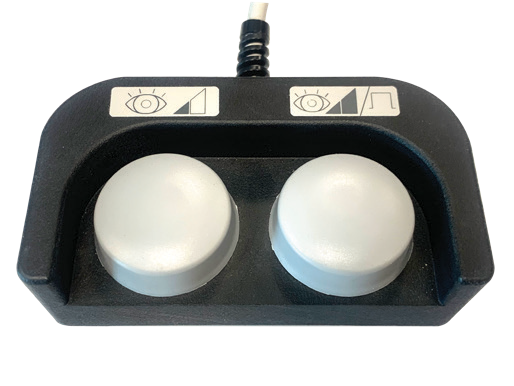

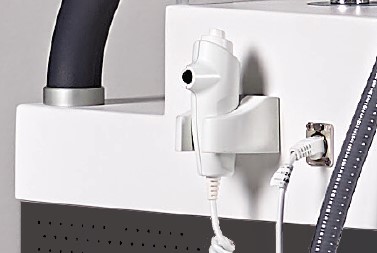

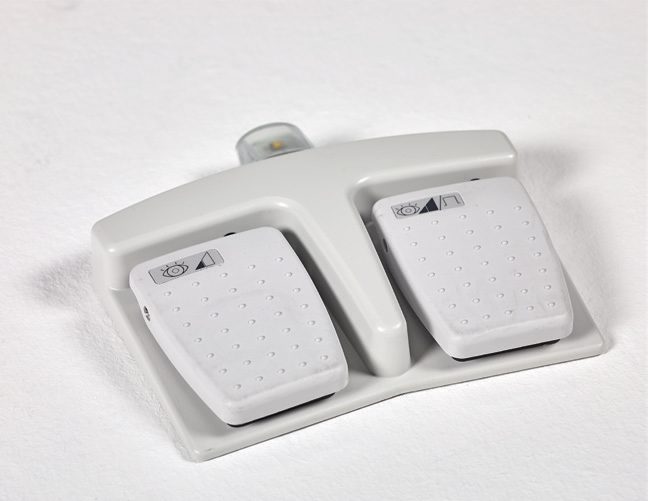

Modulated Power: Pulsed x-ray emission tailored to each procedure for optimal dose/image balance. Control by either a foot switch or a multi-function hand switch.
Advanced Imaging Modes (optional): Digital Subtraction Angiography (DSA) with Dual-Phase Angiography and Road-mapping.
25kW Power: High output generator for consistent performance with efficient, low operating temperatures for extended procedures and demanding caseloads.
Active Cooling: Active cooling reduces tube heat as much as 50% to minimizing heat buildup during long procedures and high caseloads.
