Bronchoscopes

Fujifilm Bronchoscopes

Bronchoscopes are widely used for patients with respiratory diseases, enabling doctors to decide the treatment strategy and perform therapeutic procedures. Fujifilm has combined innovative imaging, electronic, and ultrasound technology to support Pulmonologists in performing advanced diagnoses and treatments in various clinical settings.

Fujifilm 700 and 500 Series Bronchoscopes include Super CCD imaging and Close Focus technology, enabling closer observations of bronchial lesions, and supporting more precise diagnosis of lung cancer.

These lightweight bronchoscopes are designed to ease a physician’s strain during endoscopic procedures. Choose from standard, treatment, slim, and super-image bronchoscopes to suit specific applications.

Fujifilm 700 and 500 Series Bronchoscopes are also compatible with the ELUXEO^® video imaging system, with 4-LED light source offering high durability and low energy consumption.

700 Series Bronchoscope Specifications

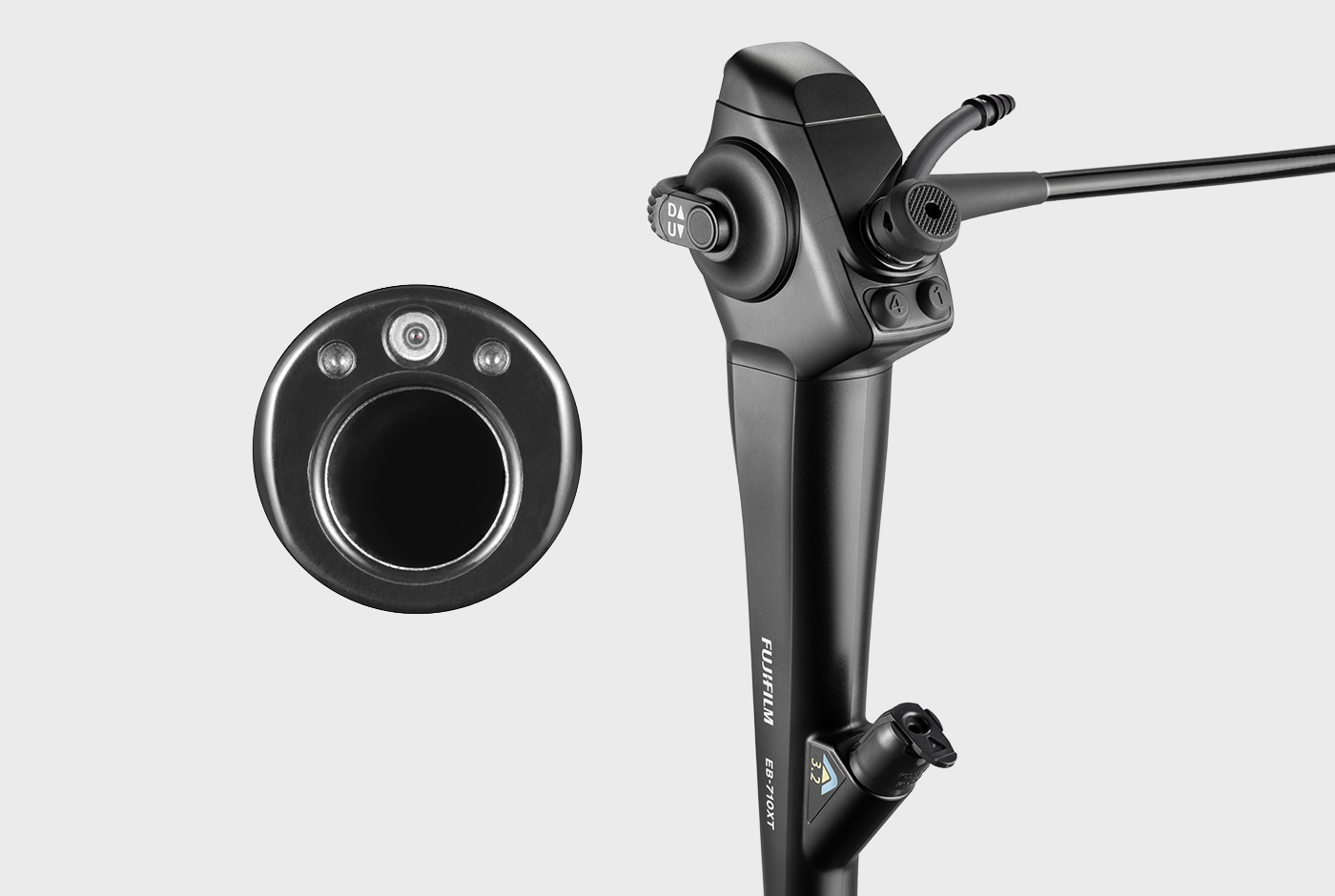

FUJIFILM EB-710XT Treatment Bronchoscope

Treatment type bronchoscope with impressive 3.2mm working channel
Distal end diameter of just 5.8mm
Insertion tube rotary function with 120° rotation
Ergonomic G7 control handle portion
Efficient one-step connection to ELUXEO^® imaging system processor

Specifications

Category	Specification
Field of view	120°
View direction	Forward (0°)
Observation range	2-50mm
Distal end diameter	5.8mm
Insertion tube diameter	6.1mm
Working channel diameter	3.2mm
Bending capability Up/Down	180°/130°
Working length	600mm
Total length	870mm
Sterilization compatibility	STERRAD / EOG

FUJIFILM EB-710P Slim Brochoscope: Accessing the periphery

Slim type bronchoscope with 2.0mm working channel
Distal end diameter of 4.1mm
Insertion tube rotary function
Ergonomic G7 slim control portion
Efficient one-step connection to ELUXEO^® processor

Specifications

Category	Specification
Field of view	120°
View direction	Forward (0°)
Observation range	2-50mm
Distal end diameter	4.1mm
Insertion tube diameter	4.1mm
Working channel diameter	2.0mm
Bending capability Up / Down	210° / 130°
Working length	600mm
Total length	870mm
Sterilization compatibility	STERRAD / EOG

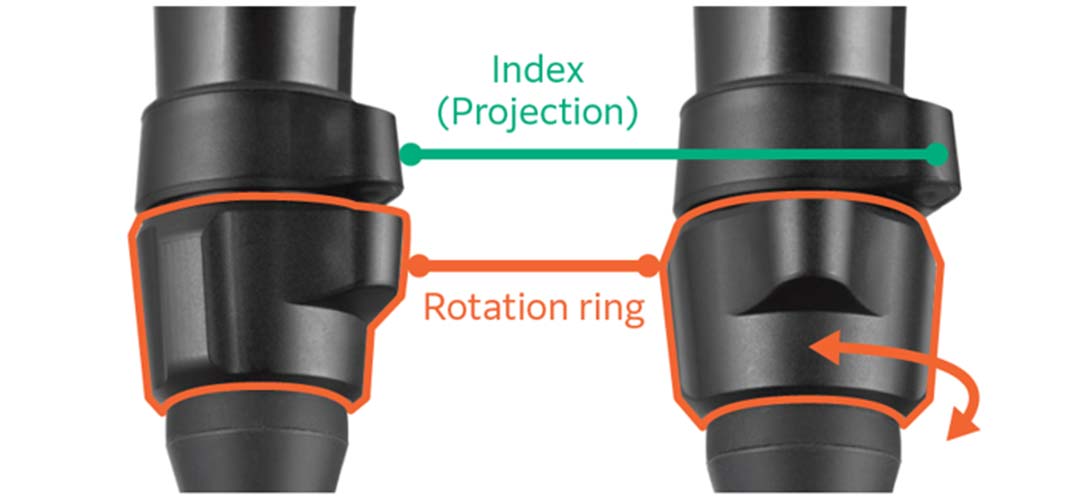

Rotation function

Enables 120-degree rotation of the insertion portion.

Sleek control portion and ergonomics

The 700 series offers a sleek control portion with a comfortable grip, an enhanced suction valve that allows for easy holding and loading of suction tubing, and 4 scope switches.

500 Series Bronchoscope Specifications

Standard Bronchoscope

Standard-type bronchoscope with high-resolution Super CCD, 210° upward bending capability and 2.2mm instrument channel.

Super CCD imaging – supports enhanced observation
210° upward bend – Improves access, especially to the upper lobe bronchus (B1-B3)
2.2mm instrument channel – enables suction (required for procedures like BAL) and supports a clear view during device insertion and if bleeding occurs.

EB-580S

Category	Specification
Viewing Direction	Forward
Observation Range	2-100mm
Field of View	120°
Distal end diameter	5.3mm
Flexible portion diameter	5.1mm
Bending capability
Up	210°
Down	130°
Forceps channel diameter	2.2mm
Working Length	600mm
Total Length	870mm
Compatible Systems	ELUXEO EPX-4440HD

Slim Bronchoscope

The EB-530P has a small 3.8mm outer diameter and a 1.2mm forceps channel, which allows for improved insertion capabilities into the peripheral bronchi. All this, plus superior imaging capabilities, combine to provide improved visual capabilities.

EB-530P

Category	Specification
Viewing Direction	Forward
Observation Range	3-100mm
Field of View	120°
Distal end diameter	3.85mm
Flexible portion diameter	5.1mm
Bending capability
Up	180°
Down	130°
Forceps channel diameter	1.2mm
Working Length	600mm
Total Length	870mm
Compatible Systems	ELUXEO EPX-4440HD

Treatment Bronchoscope

Treatment bronchoscope with high-resolution Super CCD and a 2.8mm instrument channel.

Super CCD imaging –supports enhanced observation
2.8mm instrument channel – enables multiple procedure types and a wide range of instruments

EB580T

Category	Specification
Viewing Direction	Forward
Observation Range	2-100mm
Field of View	120°
Distal end diameter	5.8mm
Flexible portion diameter	5.9mm
Bending capability
Up	180°
Down	130°
Forceps channel diameter	2.8mm
Working Length	600mm
Total Length	870mm
Compatible Systems	ELUXEO EPX-4440HD

Super-Image Bronchoscope

The EB-530H displays a high-resolution wide angle image of 140° which is 20° wider than the conventional view. The wider field of view enables a wider observation field to be displayed in high-resolution for more effective and detailed diagnoses.

EB-530H

Category	Specification
Viewing Direction	Forward
Observation Range	3-100mm
Field of View	140°
Distal end diameter	5.4mm
Flexible portion diameter	4.9mm
Bending capability
Up	180°
Down	130°
Forceps channel diameter	2.0mm
Working Length	600mm
Total Length	870mm
Compatible Systems	ELUXEO EPX-4440HD
