Digital Mammography Accessories

A Range of Supporting Digital Mammography Products

ASPIRE Cristalle is supported by a range of accessories designed to improve patient comfort, offer diagnostic options, ensure optimal image quality, and improve throughput.

Contact Us

Comfort Paddle

Patented paddle is designed to improve patient comfort during mammograms

The unique Comfort Paddle allows pressure to be more evenly and gently distributed across the breast compared to conventional, flexible paddles.

  • Slotted paddle edge allows plate to flex to the contour of the breast.
  • Bends from center of breast to thinner edges.
  • Distributes pressure more evenly.
  • Tilting paddle allows for more gradual and more even compression.
  • Available in two sizes to accommodate different breast sizes: 18x24cm and 24x30cm.
  • Available standard on ASPIRE Cristalle.

Slotted paddle edge distributes pressure more evenly

Fujifilm’s Comfort Paddle distributes pressure that is normally concentrated on the thickest part of the breast, helping to compress evenly along the natural curve of the breast with appropriate but not excessive force.

Tilting paddle mechanism for more gradual and even compression

The Comfort Paddle allows for gradual application of pressure to the breast as compared to standard compression. The tilting of the paddle toward the nipple side allows for more even compression across the breast, helping to separate structures and maintain correct positioning.

Pressure distribution



ASPIRE Stereotactic Biopsy System

Accurate and efficient stereotactic biopsy

Available for use with ASPIRE Cristalle, the Stereotactic Biopsy System allows radiologists to easily perform reliable, accurate procedures with all the features of ASPIRE digital mammography.

The optional Stereotactic Biopsy System makes use of the technology, comfort, and efficiency features of ASPIRE Cristalle, with a tube/detector unit that can be positioned from -90° to +90°. Requires precise enlargement monitor.

Features

  • Tomo Biopsy option allows for targeting of suspicious areas under tomosynthesis guidance. Tomo biopsy is a simpler approach that can help reduce total procedure time.
  • Review previous examinations on the acquisition workstation simply by requesting images from PACS.
  • Targeting support includes a high-resolution dual-display system, selectable targeting mode (100 or 50µm), targeting guide function on stereo images and advanced image processing.
  • Target position is shown on display screen, allowing technologist to make fine adjustments of the Z coordinate.
  • Quickly and efficiently check needle depth directly from the biopsy device, providing peace of mind for the patient and protecting the exposure table from accidental damage.
QC Tools

1 Shot Phantom M Plus

Simple, efficient, accurate QC

Fujifilm’s quality control program for ASPIRE Cristalle offers a simple, efficient way for technologists to perform the necessary quality tests to maintain peak image quality. Used for both screening and diagnostic mammography imaging, the 1 Shot Phantom M Plus allows technologists and physicists to efficiently perform accurate daily, quarterly, semi-annual and annual QC tests.

10 tests with one exposure

  1. 1.Missed tissue at chest wall side
  2. 2.CNR
  3. 3.System sensitivity
  4. 4.Geometric distortion
  5. 5.System artifact (entire image)
  6. 6.Uniformity
  7. 7.Dynamic range
  8. 8.Spatial resolution
  9. 9.LCD
  10. 10.Linearity/beam quality
Additional Accessories

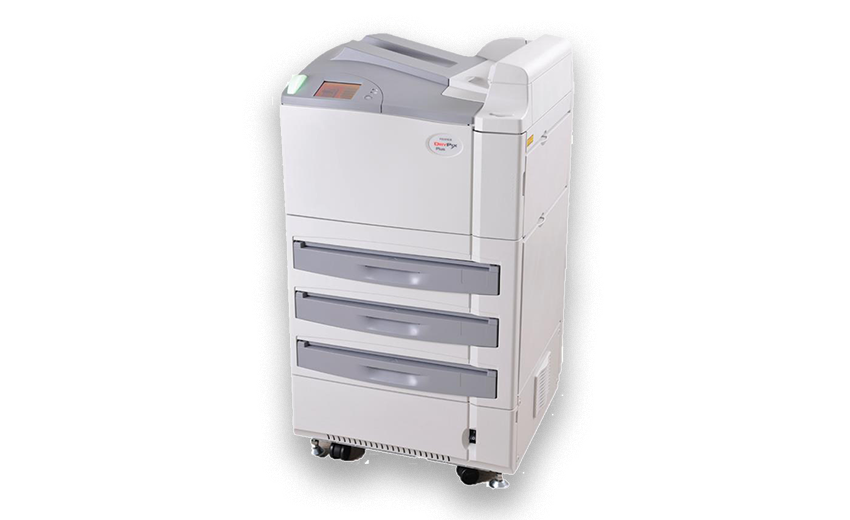

Drypix Plus Dry Laser Imager

Premium Image Quality from a Compact Imager

The DryPix Plus is a dry laser imager which combines the high quality and performance of Fujifilm’s centralized imagers, with an extremely compact design and convenient 110 volt power, making it ideal for small centralized departments that do not need the ultra-high speed and throughput of DryPix 5000. The DryPix Plus has excellent throughput between 110 and 160 films per hour. Like the DryPix 5000, this unit also features 50-micron high resolution printing and has been approved for use with Full Field Digit

al Mammography (FFDM) devices. It accommodates all common film sizes, has three film drawers and an optional top-mounted 4-bin film sorter. An internal DICOM print server with Windows XP operating system allows the DryPix Plus to operate with high performance in environments where space is at a premium.

  • Up to 160 films/hour (110 14″x17″ films/hour)
  • 85 seconds (14″x17″ film)
  • Verification SOP Class
  • Basic Gray Scale Print Management Meta SOP Class (SCP)
  • Print Job SOP Class (SCP)
  • Annotation SOP Class
  • Queue Management SOP Class
Type DI-HL Type DI-HLc
Sizes 14″x17″ (35 x 43 cm) 14″x17″ (35 x 43 cm)
14″x14″ (35 x 35 cm) 8″x10″
10″x14″ (26 x 36 cm)
10″x12″
8″x10″
  • 100 microns / 50 microns (selectable)
DryPix Plus DryPix Plus w/ Sorter
Width 24″ 24″
Depth 23″ 23″
Height 43″ 55″
Weight 353 lbs 375 lbs
  • 100-120 VAC 12 A

Support For International Standards

Like all of Fujifilm’s women’s healthcare products, the system was designed based on feedback from physicians and technologists worldwide, and Fujifilm’s proprietary test items and calculations comply with international standards and guidelines (IEC61223-3-2 Ed2.0 and EUREF ED4.0).
