Overview

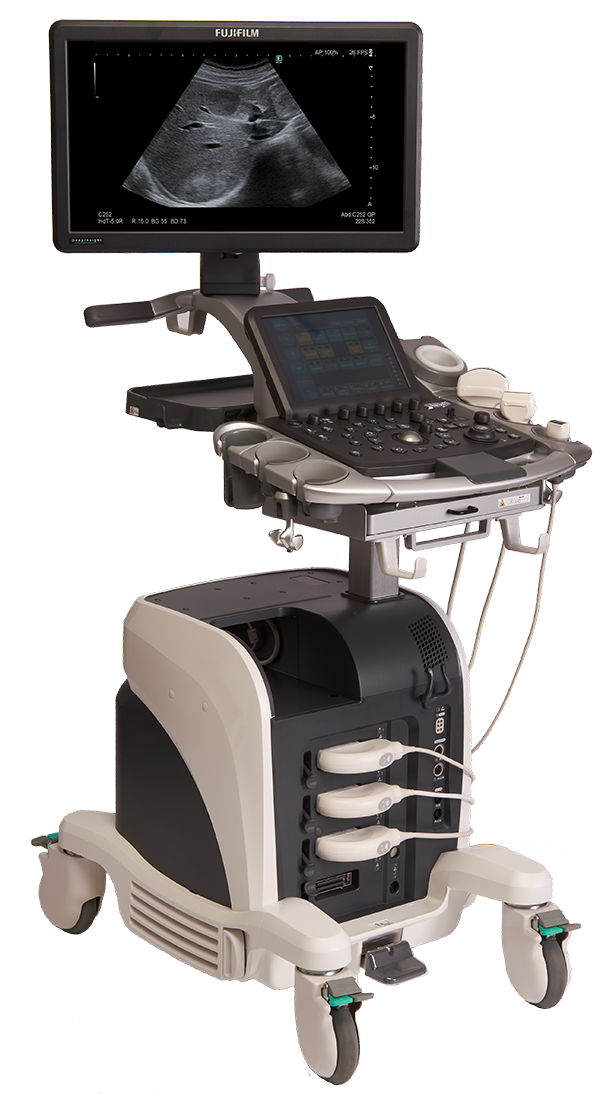

ARIETTA 650DI General Imaging

Striking a balance between size and performance, the ARIETTA 650DI offers leading-edge technologies in a compact chassis. Its integrated DeepInsight Technology uses cognitive recognition to accurately remove electronic noise to improve image clarity, especially at depth. Its reduced size and optional battery unit make it ideal for both portable scanning and as an outpatient imaging workhorse. The ARIETTA 650DI can easily be configured for cardiac, vascular, and OB/GYN applications, making it a versatile shared service system.

Learn More

Advanced Imaging Techniques

DeepInsight, which utilizes cognitive recognition technology for image enhancement, extracts only the necessary information from a vast amount of data, delivering clearer representations of fine and complex tissue structures that could, until now, have been masked by noise or heterogenous focusing. A more natural representation of the tissue structure is achieved.

Learn more

General Imaging Ultrasound Solutions

For a comfortable, convenient imaging environment, the ARIETTA 650 DeepInsight includes:

Advanced and unique probes

Learn More

Transducers

The ARIETTA 650DI has many advanced and unique probes that fully cover the expanding range of patients that benefit from a more complete ultrasound diagnosis.

C252

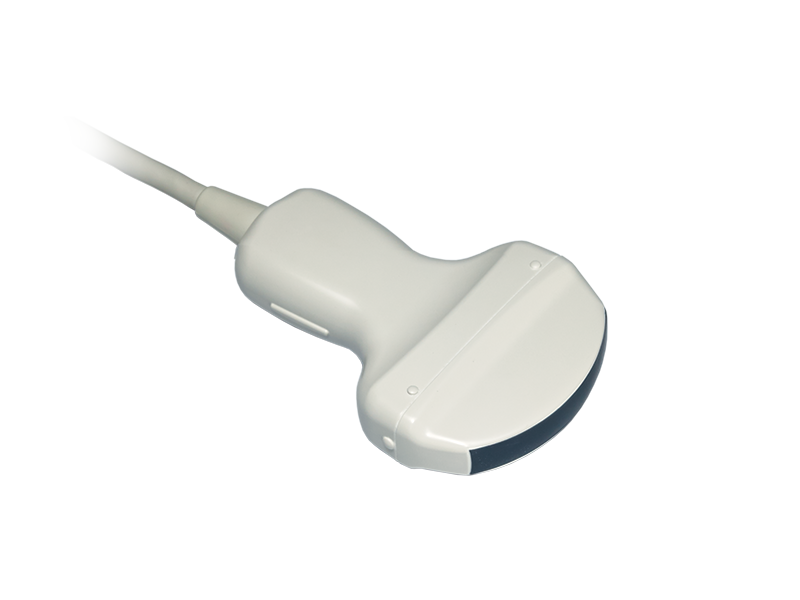

C35
C421
C23
VC35
L441
L64
L34
L55
L53K
S11
S31
S42
S3ESEL
C41V1
VC41V
C41V

Single-crystal Convex Transducer

  • Array Type: Convex
  • Frequency Range: 6 – 1 MHz
  • Scan Width: 50 mm Radius
  • Scan Angle: 70° FOV

Abdomen Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 2 MHz
  • Scan Width: 50 mm Radius
  • Scan Angle: 70° FOV

Abdomen Transducer

  • Array Type: Convex
  • Frequency Range: 12 – 3 MHz
  • Scan Width: 21 mm Radius
  • Scan Angle: 85° FOV

Abdomen Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 2 MHz
  • Scan Width: 50 mm Radius
  • Scan Angle: 70° FOV

3D/4D Abdomen, Obstetrics Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 2 MHz
  • Scan Width: 46 mm Radius
  • Scan Angle: 72° FOV

Vascular Transducer

  • Array Type: Linear
  • Frequency Range: 12 – 2 MHz
  • Scan Width: 38 mm Width

Breast, Small Parts, Thyroid Transducer

  • Array Type: Linear
  • Frequency Range: 18 – 5 MHz
  • Scan Width: 38 mm Width

Vascular Transducer

  • Array Type: Linear
  • Frequency Range: 7 – 3 MHz
  • Scan Width: 38 mm Width

Breast, Small Parts, Thyroid Transducer

  • Array Type: Linear
  • Frequency Range: 13 – 5 MHz
  • Scan Width: 50 mm Width

Hockey Stick Transducer

  • Array Type: Linear
  • Frequency Range: 15 – 3 MHz
  • Scan Width: 25 mm Width

Single Crystal Adult Transducer

  • Array Type: Phased
  • Frequency Range: 5 – 1 MHz
  • Scan Angle: 90° FOV

Abdomen, Cardiology, Pediatric Transducer

  • Array Type: Phased
  • Frequency Range: 9 – 2 MHz
  • Scan Angle: 90° FOV

Neonatal Transducer

  • Array Type: Phased
  • Frequency Range: 14 – 3 MHz
  • Scan Angle: 100° FOV

Adult TEE Transducer

  • Frequency Range: 8 – 2 MHz
  • Scan Angle: 100° FOV

Transvaginal Transducer

  • Array Type: Convex
  • Frequency Range: 10 – 2 MHz
  • Scan Width: 10 mm Radius
  • Scan Angle: 200° FOV

3D/4D Transvaginal, Obstetrics Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 2 MHz
  • Scan Width: 10 mm Radius
  • Scan Angle: 145° FOV

Transrectal Biopsy & Guidance Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 4 MHz
  • Scan Width: 10 mm Radius
  • Scan Angle: 200° FOV

System Features

Designed to provide maximum simplicity, user efficiency, and portability. From its compact footprint to its intuitive, time-saving user interface, the ARIETTA 650DI was engineered for the increasing workloads of today’s busy radiology departments.

Ergonomics
Protocol Assistant
Efficient Workflow
Mobility

Ergonomics

The importance of ergonomically designed ultrasound systems cannot be understated. The Arietta 650DI was designed to minimize repetitive stress while maximizing flexibility across facility.

Protocol Assistant

Provides customizable automation to assist users by performing routine steps such as annotation and mode changes.

Efficient Workflow

Utilize the pre-set configurations, easy transducer selection, and automated image optimization, all with the touch of just a few buttons.

Mobility

Lightweight, stable and easy to move. Transports with ease from room to room.
