ARIETTA DI for General Imaging

The Fujifilm ARIETTA DeepInsight premium ultrasound system combines our advanced Variable Beamformer with DeepInsight cognitive technology, powering improved clarity at depth, and making it easier to visualize structures even in a difficult body habitus. A variety of efficiency tools based on automated image analysis and protocol-based operation accelerate the scanning process, automatically performing routine actions so the Sonographer does not have to.

Contact Us

Our innovation extends beyond image quality alone. The ARIETTA DI is thoughtfully engineered around the clinician experience, offering ergonomic comfort, adaptable system configurations to meet the needs of diverse clinical environments, and intelligent workflow tools that enhance efficiency and streamline every exam.

General Imaging Ultrasound Solutions

For a comfortable, convenient imaging environment, the ARIETTA DI includes:

Advanced and Unique Transducers



CONTACT US

Transducers

The ARIETTA DI has many advanced and unique transducers that fully cover the expanding range of patients that benefit from a more complete ultrasound diagnosis.

C252
C35
C421
C23
VC35
L441
L64
L34
L55
L53K
S121
S31
S42
C41V1
VC41V
C41V
CC41R2
CL4416R1
MXS1
S3ESCLS
S3ESEL

Single-crystal Convex Transducer

  • Array Type: Convex
  • Frequency Range: 6 – 1 MHz
  • Scan Width: 50 mm Radius
  • Scan Angle: 70° FOV

Abdomen Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 2 MHz
  • Scan Width: 50 mm Radius
  • Scan Angle: 70° FOV

Abdomen Transducer

  • Array Type: Convex
  • Frequency Range: 12 – 3 MHz
  • Scan Width: 21 mm Radius
  • Scan Angle: 85° FOV

Abdomen Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 2 MHz
  • Scan Width: 50 mm Radius
  • Scan Angle: 70° FOV

3D/4D Abdomen, Obstetrics Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 2 MHz
  • Scan Width: 46 mm Radius
  • Scan Angle: 72° FOV

Vascular Transducer

  • Array Type: Linear
  • Frequency Range: 12 – 2 MHz
  • Scan Width: 38 mm Width

Breast, Small Parts, Thyroid Transducer

  • Array Type: Linear
  • Frequency Range: 18 – 5 MHz
  • Scan Width: 38 mm Width

Vascular Transducer

  • Array Type: Linear
  • Frequency Range: 7 – 3 MHz
  • Scan Width: 38 mm Width

Breast, Small Parts, Thyroid Transducer

  • Array Type: Linear
  • Frequency Range: 13 – 5 MHz
  • Scan Width: 50 mm Width

Hockey-Stick Transducer

  • Array Type: Linear
  • Frequency Range: 15 – 3 MHz
  • Scan Width: 25 mm Width

Single Crystal, Adult Transducer

  • Array Type: Phased
  • Frequency Range: 5 – 1 MHz
  • Scan Angle: 90° FOV

Abdomen, Cardiology, Pediatric Transducer

  • Array Type: Phased
  • Frequency Range: 9 – 2 MHz
  • Scan Angle: 90° FOV

Neonatal Transducer

  • Array Type: Phased
  • Frequency Range: 14 – 3 MHz
  • Scan Angle: 100° FOV

Transvaginal Transducer

  • Array Type: Convex
  • Frequency Range: 10 – 2 MHz
  • Scan Width: 10 mm Radius
  • Scan Angle: 200° FOV

3D/4D Transvaginal, Obstetrics Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 2 MHz
  • Scan Width: 10 mm Radius
  • Scan Angle: 145° FOV

Transrectal Biopsy & Guidance Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 4 MHz
  • Scan Width: 10 mm Radius
  • Scan Angle: 200° FOV

Side-Fire Bi-Plane Prostate Transducer

  • Sagital: 10 – 2 MHz  | 200° FOV (9 mmR)
  • Axial: 10 – 2 MHz  | 200° FOV (9 mmR)
  • Simultaneous display
  • Wide scanning

Bi-Plane Transperineal Transducer

  • Convex: 10 – 2 MHz  | 200° FOV (9 mmR)
  • Linear: 14 – 2 MHz  | 63 mm
  • Simultaneous bi-plane imaging
  • Dual display format
  • Trapezoidal display

3D TTE

  • Frequency Range: 5 – 1 MHz
  • Scan Angle: 90° FOV

Pediatric TEE Transducer

  • Frequency Range: 8 – 2 MHz
  • Scan Angle: 90° FOV
  • Insertion Diameter: 7.2 mm

Adult TEE Transducer

  • Frequency Range: 8 – 2 MHz
  • Scan Angle: 100° FOV

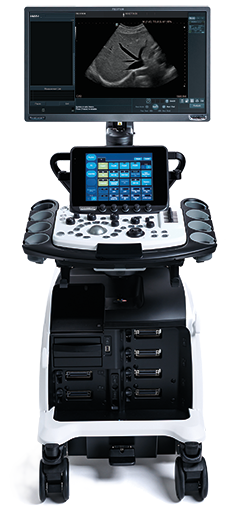

System Features

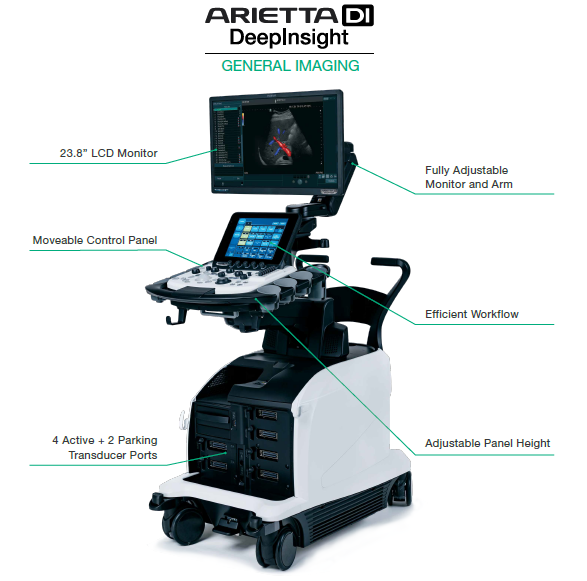

The ARIETTA DI is designed to provide maximum simplicity and user efficiency. From its compact footprint to its intuitive, time-saving user interface, the ARIETTA DI was engineered for the increasing workloads of today’s busy radiology departments.

Ergonomics
Efficient Workflow
Protocol Assistant
High Resolution Monitor
Mobility
Programmable Presets

Ergonomics

Tilt, swivel, and height adjustable.

Efficient Workflow

Utilize the pre-set configurations, easy transducer selection, and optimized image allocation, all with the touch of just a few buttons.

Protocol Assistant

Prior fixed examination protocols and imaging conditions can be registered. Button operations can be reduced significantly to help support efficiency.

High Resolution Monitor

With a high contrast ratio and wide viewing angle, the 23.8 inch high resolution monitor gives a rich representation of the display image.

Mobility

Lightweight, stable and easy to move. Transports with ease from room to room.

Programmable Presets

Fully customizable presets for each user.
