Overview

LISENDO DI Cardiovascular

Faster workflows and greater diagnostic confidence through

  • pioneering imaging technologies for exceptional image clarity
  • zero-click analysis

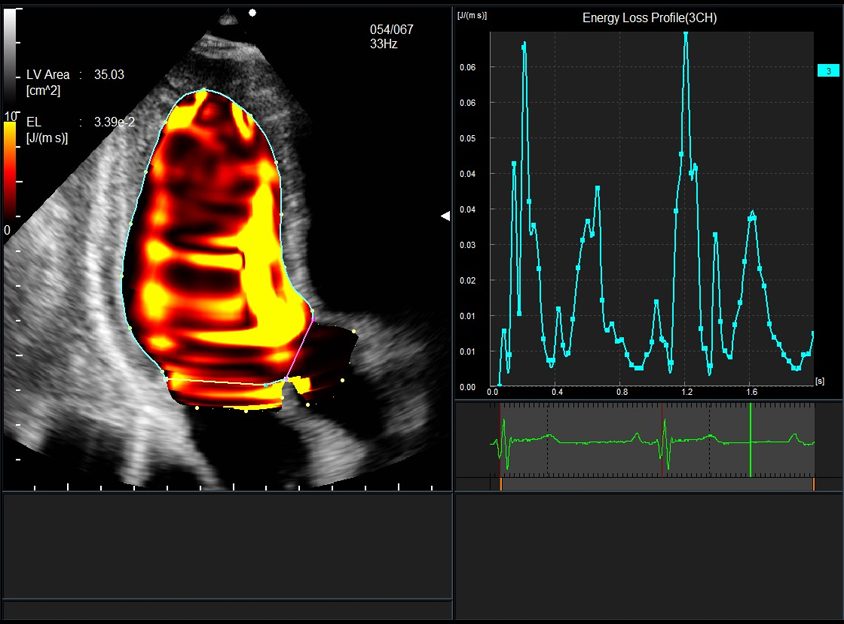

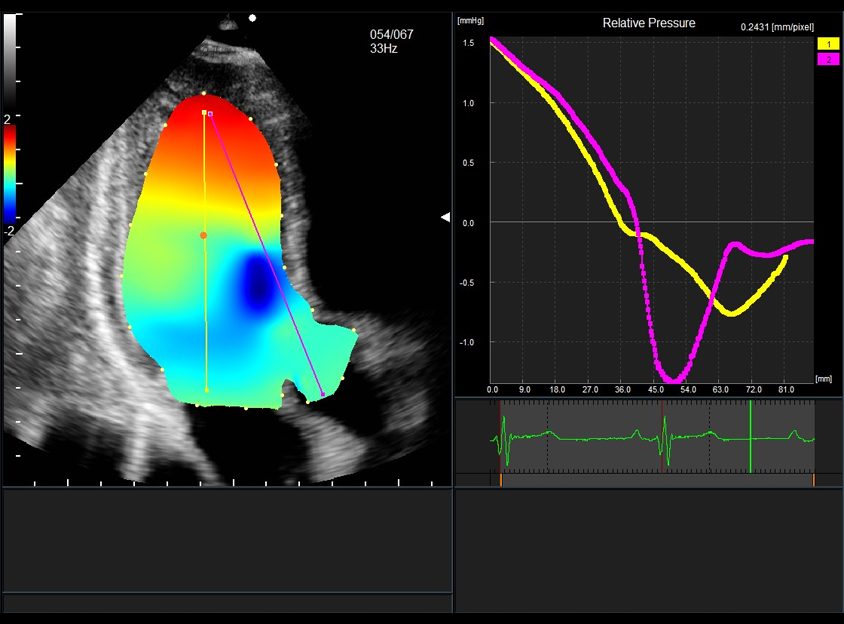

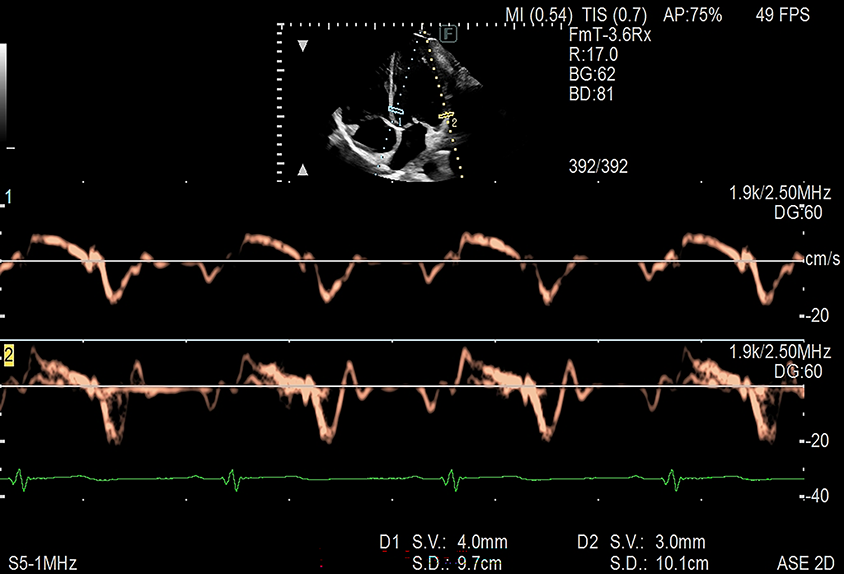

  • innovative hemodynamic evaluation

Enabling clinicians to obtain consistent, reproducible insights, helping them focus on what matters most: delivering high-quality patient care.

Contact Us

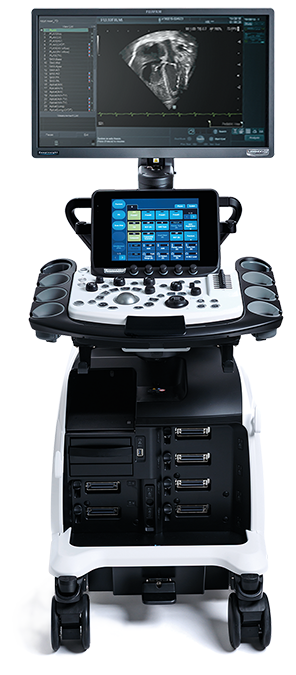

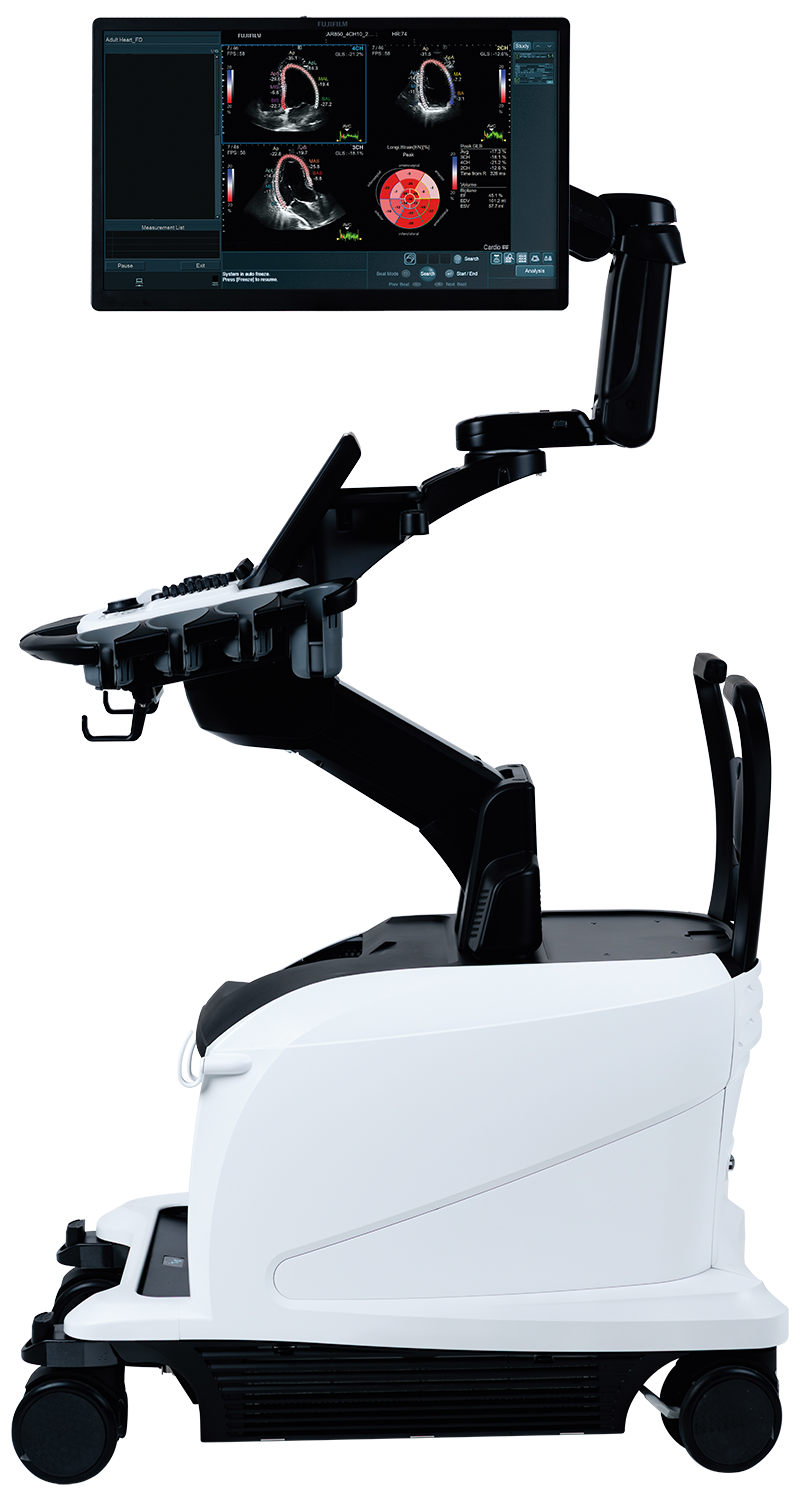

The Fujifilm LISENDO DI premium ultrasound system combines our advanced Variable Beamformer with DeepInsight cognitive technology, powering improved clarity at depth, and making it easier to visualize structures even in a difficult body habitus. A variety of efficiency tools based on automated image analysis and protocol-based operation accelerate the scanning process, automatically performing routine actions so the Sonographer does not have to.

Dedicated CV Ultrasound Solutions For Cardiologists

For precise cardiovascular ultrasound imaging, the LISENDO DI includes:

Advanced and Unique Transducers



Contact Us

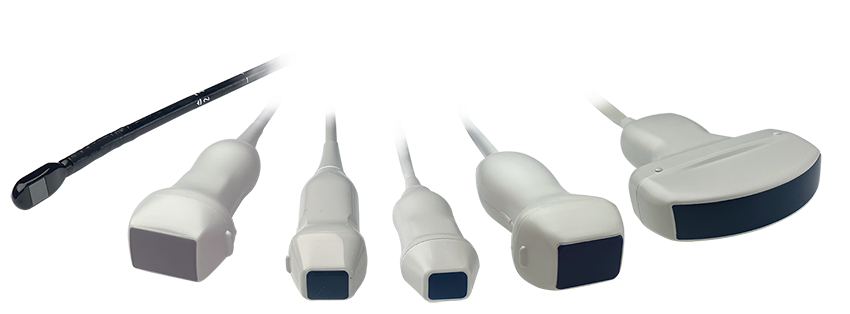

Transducers

Designed by cardiologists… For cardiologists

The LISENDO DI has many advanced and unique probes that fully cover the expanding range
of patients that benefit from a more complete ultrasound diagnosis.

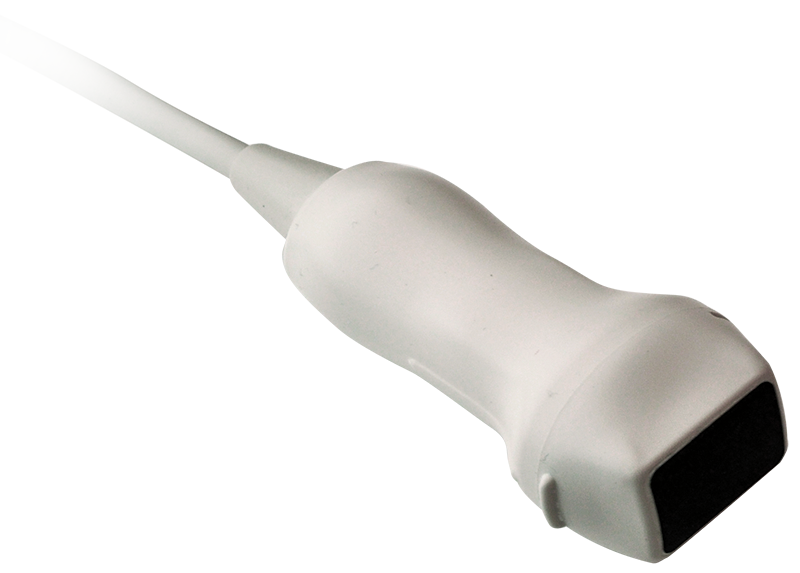

S121

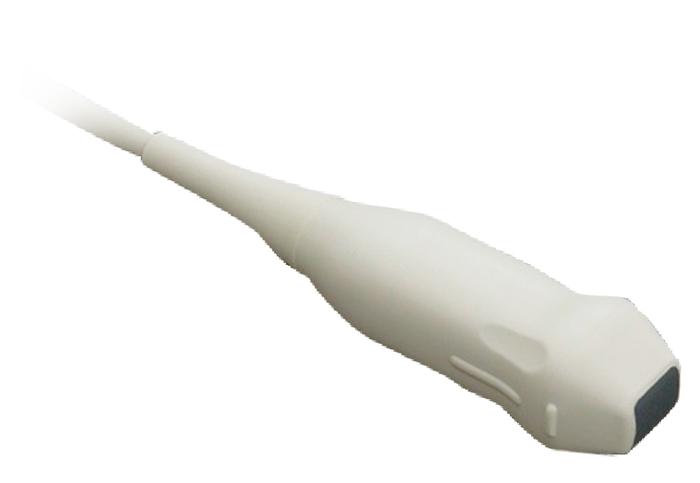

S31

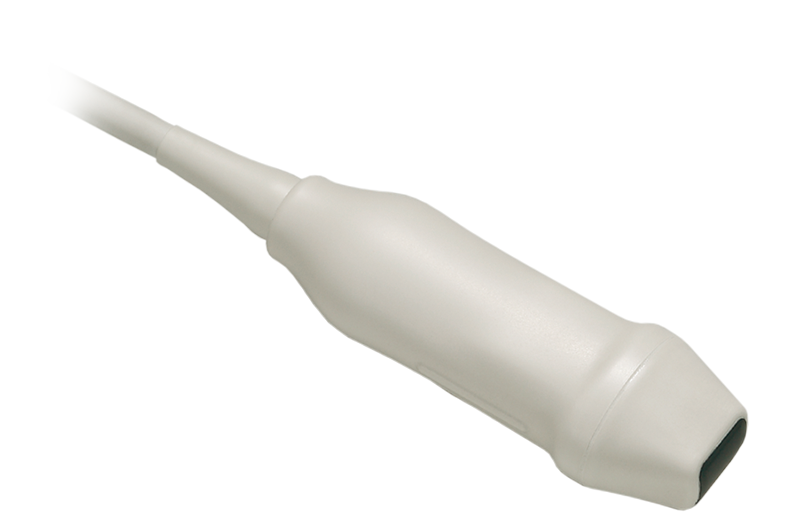

S42
MXS1

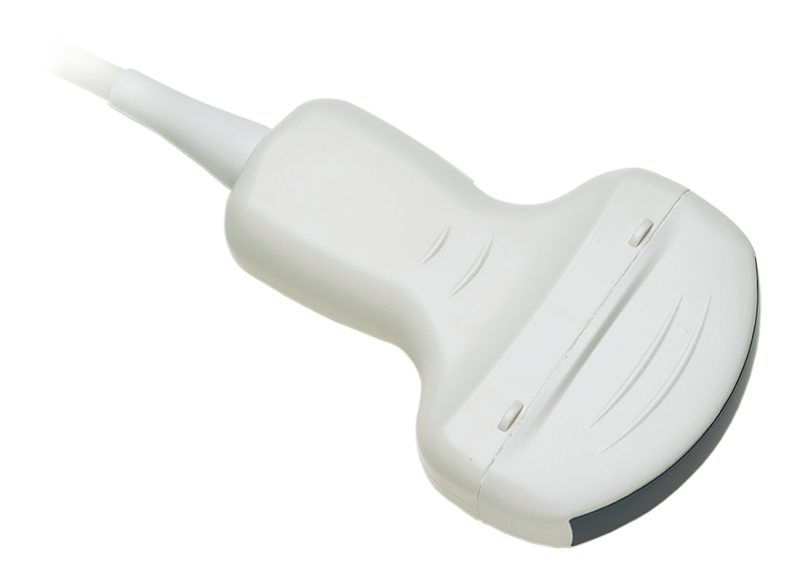

C252

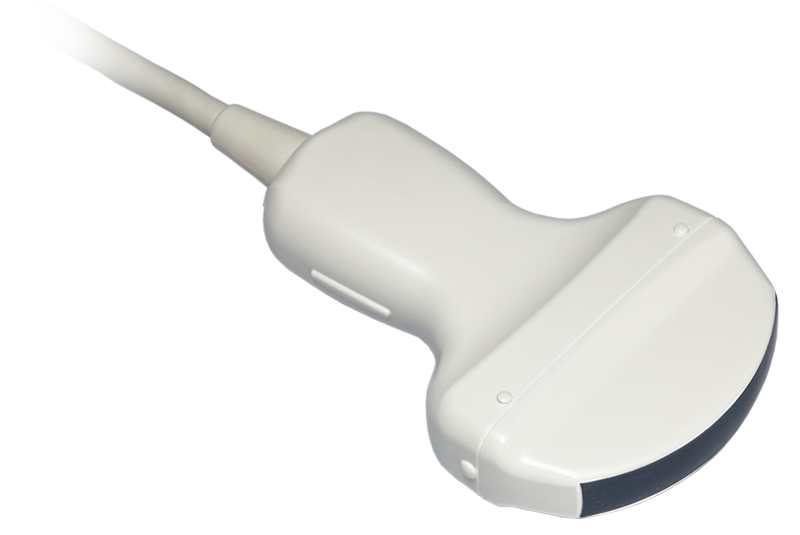

C35

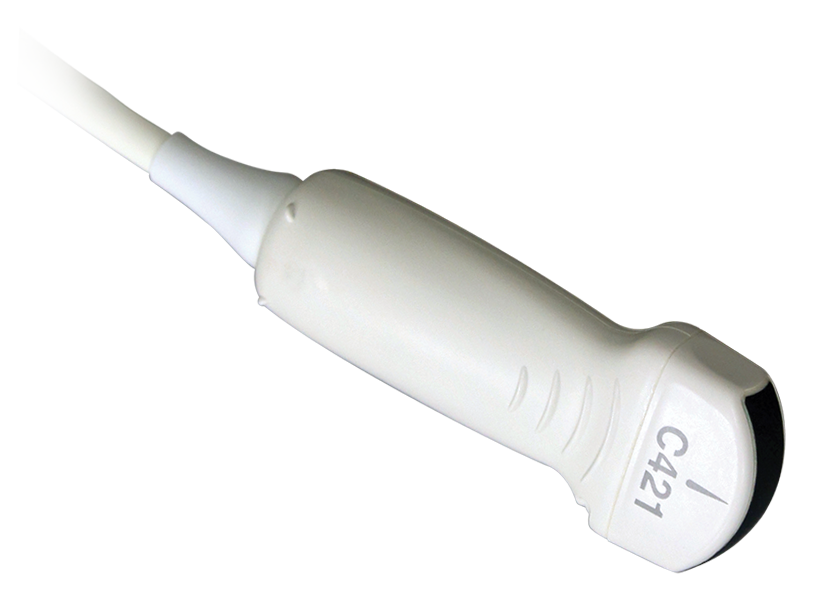

C421

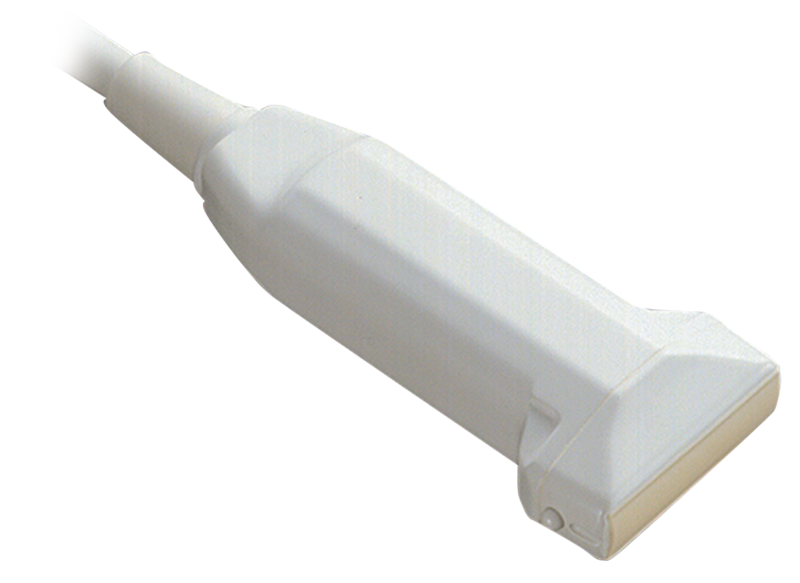

L34

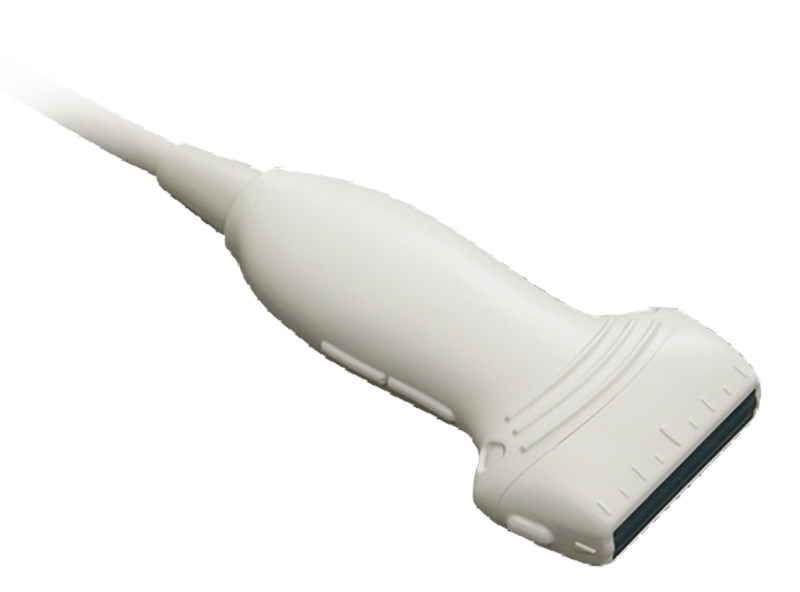

L64

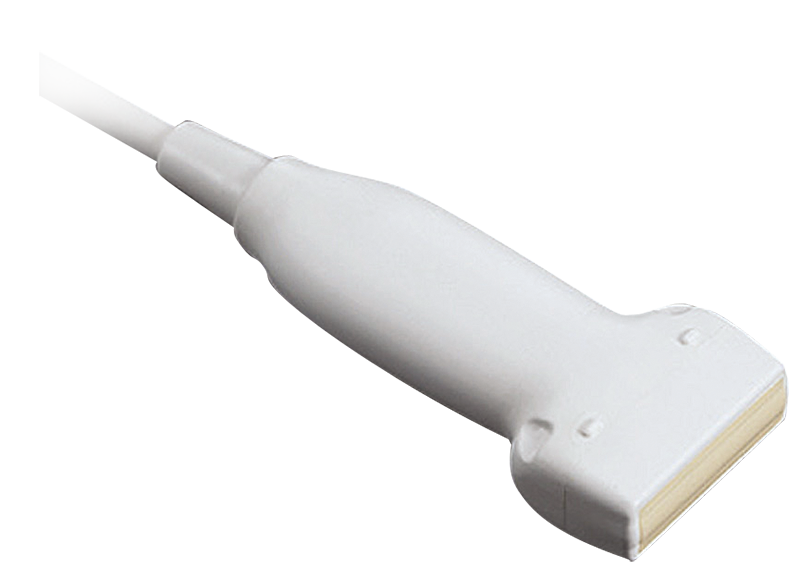

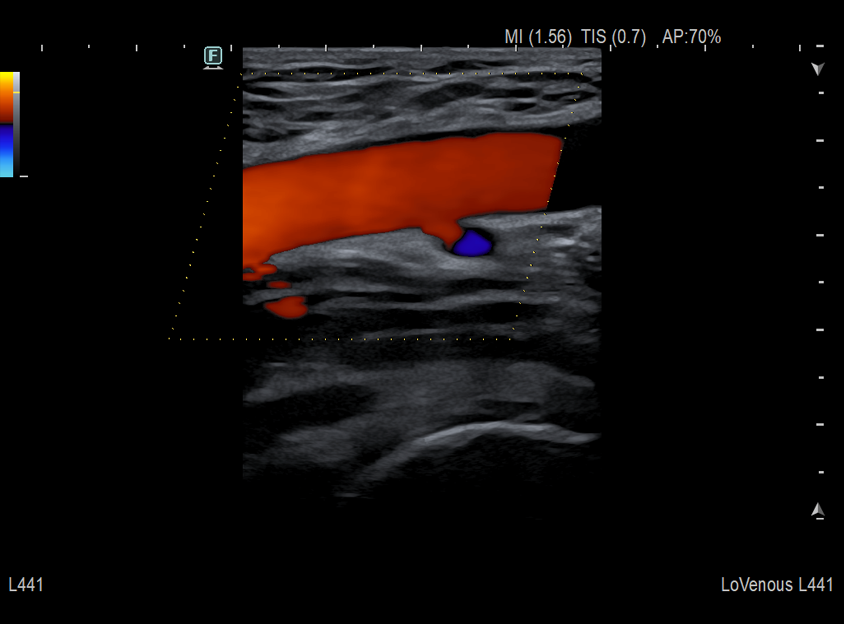

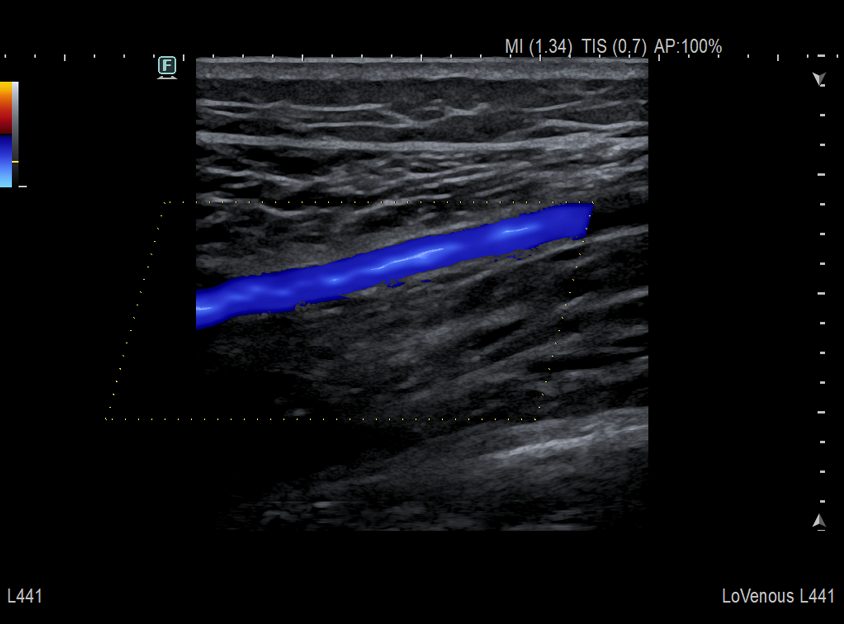

L441

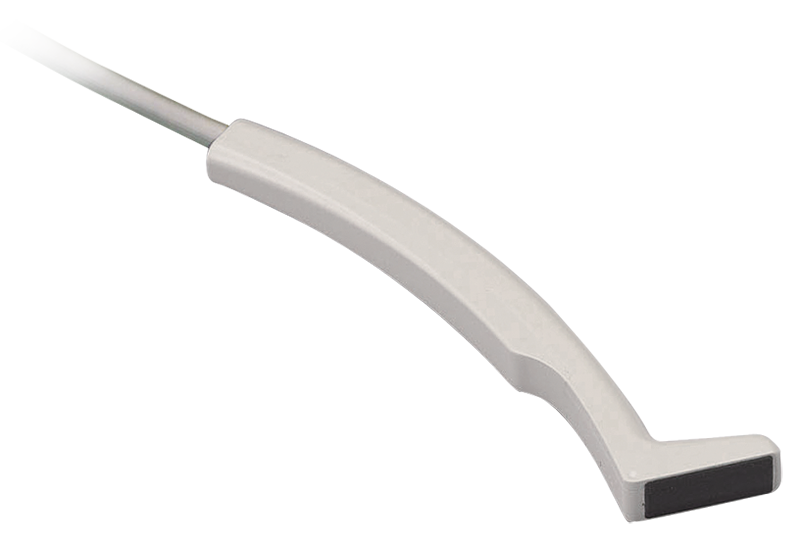

L53K

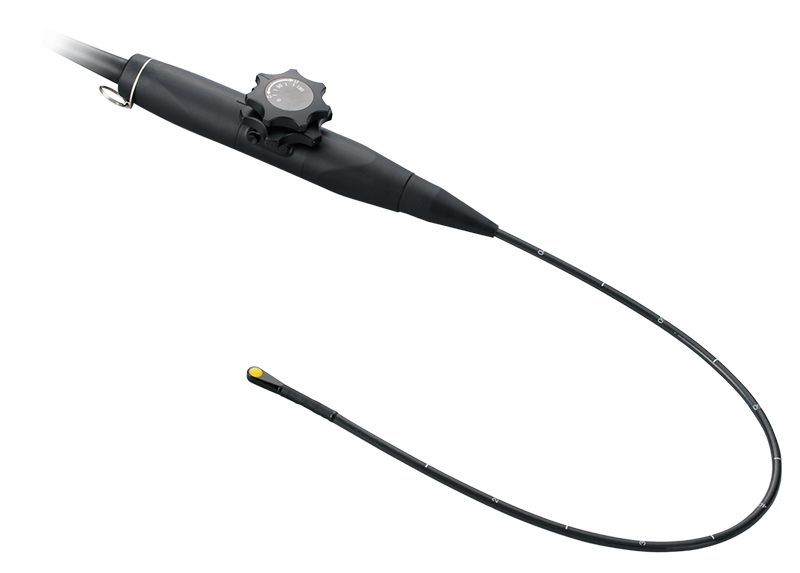

S3ESCLS

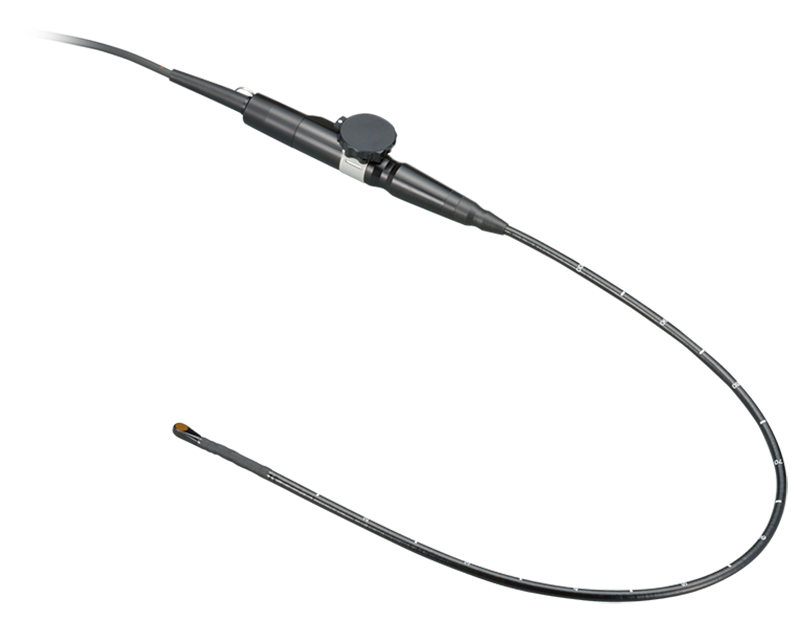

S3ESEL

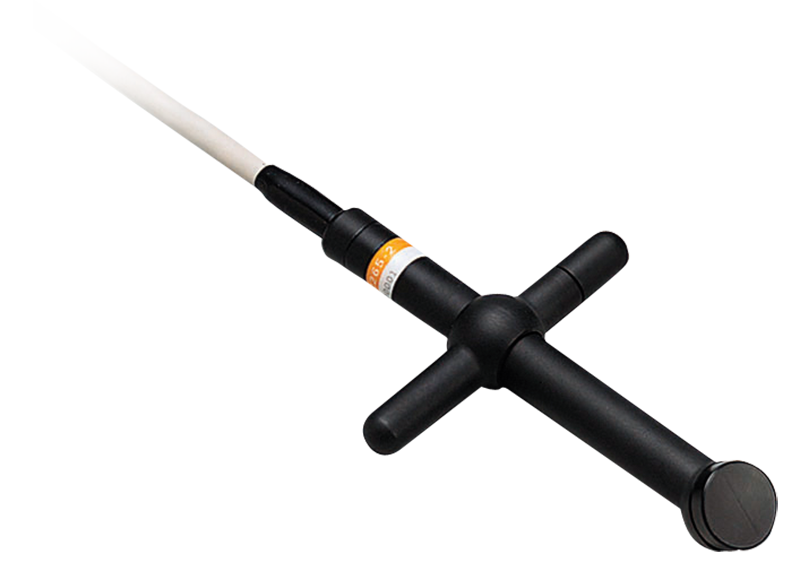

UST-2265-2

Single Crystal Adult Transducer

  • Array Type: Phased
  • Frequency Range: 5 – 1 MHz
  • Scan Angle: 120° FOV
  • Built to withstand the rigors of daily use
  • Multi-layered crystal technology
  • Exceptional near and far field resolution

Single Crystal Pediatric Transducer

  • Array Type: Phased
  • Frequency Range: 9 – 2 MHz
  • Scan Angle: 100° FOV

High Frequency Neonatal Transducer

  • Array Type: Phased
  • Frequency Range: 14 – 3 MHz
  • Scan Angle: 100° FOV

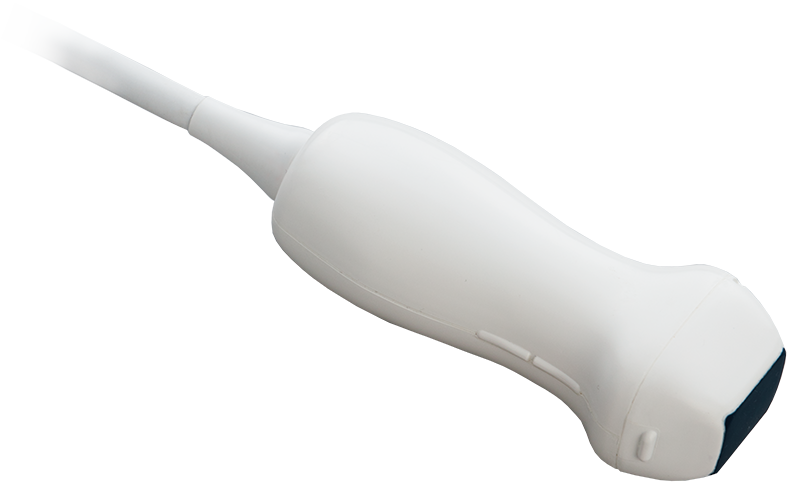

3D TTE

  • Frequency Range: 5 – 1 MHz
  • Scan Angle: 90° FOV

Single Crystal Abdomen Transducer

  • Array Type: Convex
  • Frequency Range: 6 – 1 MHz
  • Scan Width: 50 mm Radius
  • Scan Angle: 70° FOV

High Frequency Fetal Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 2 MHz
  • Scan Width: 50 mm Radius
  • Scan Angle: 70° FOV

High Frequency Abdomen Transducer

  • Array Type: Convex
  • Frequency Range: 12 – 3 MHz
  • Scan Width: 21 mm Radius
  • Scan Angle: 85° FOV

Low Frequency, Vascular Transducer

  • Array Type: Linear
  • Frequency Range: 7 – 3 MHz
  • Scan Width: 38 mm Width

High Frequency, Vascular Transducer

  • Array Type: Linear
  • Frequency Range: 18 – 5 MHz
  • Scan Width: 38 mm Width

Mid Frequency, Vascular Transducer

  • Array Type: Linear
  • Frequency Range: 12 – 2 MHz
  • Scan Width: 38 mm Width

Superficial Vascular Hockey-Stick Transducer

  • Array Type: Linear
  • Frequency Range: 15 – 3 MHz
  • Scan Width: 25 mm Width

Pediatric TEE Transducer

  • Frequency Range: 8 – 2 MHz
  • Scan Angle: 90° FOV
  • Insertion Diameter: 7.2 mm

Adult TEE Transducer

  • Frequency Range: 8 – 2 MHz
  • Scan Angle: 100° FOV

Independent CW Doppler Transducer

  • Frequency Range: 2 MHz

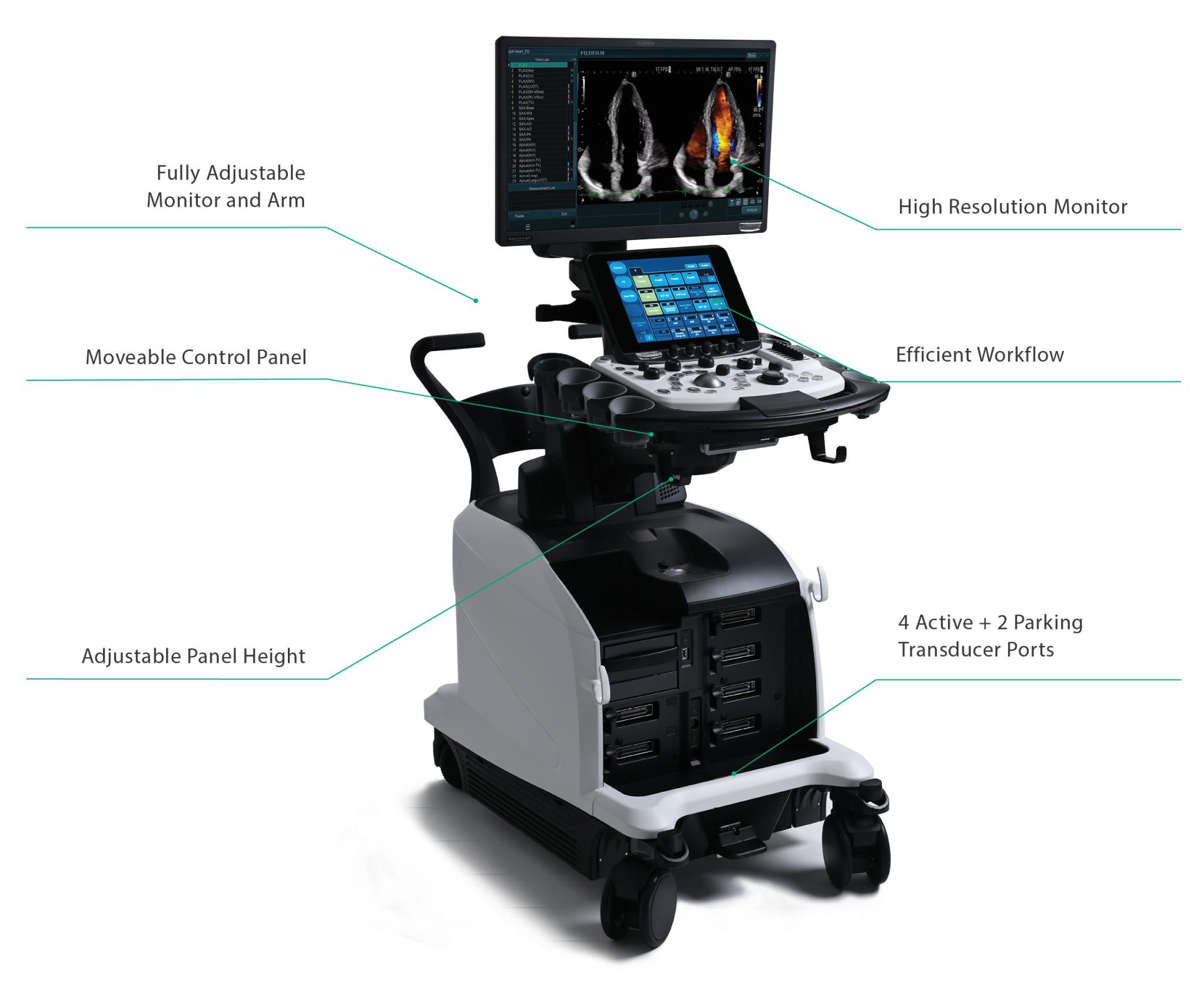

System Features

The LISENDO DI is designed to support faster workflows and greater diagnostic confidence, combining pioneering imaging technologies for exceptional image clarity, zero-click analysis, and innovative hemodynamic evaluation so clinicians can obtain consistent, reproducible insights—helping them focus on what matters most: delivering high-quality patient care.



Ergonomics
Protocol Assistant
Efficient Workflow
High Resolution Monitor
Mobility
Programmable Presets

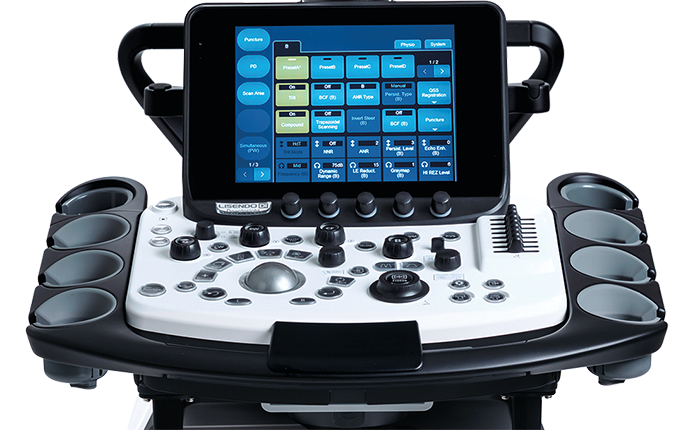

Ergonomics

Tilt, swivel, and height adjustable.

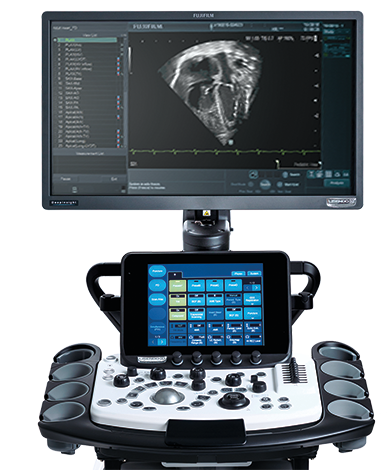

Protocol Assistant

Prior fixed examination protocols and imaging conditions can be registered. Button operations can be reduced significantly to help support efficiency.

Efficient Workflow

Utilize the pre-set configurations, easy transducer selection, and optimized image allocation, all with the touch of just a few buttons.

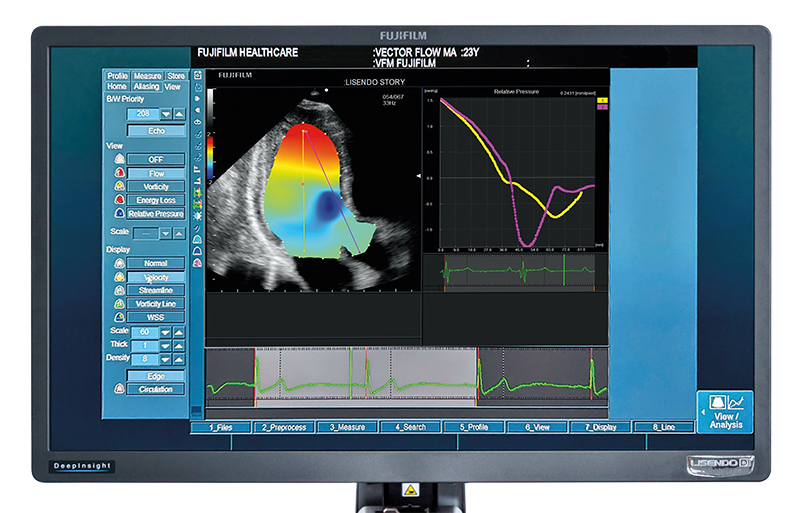

High Resolution Monitor

With a high contrast ratio and wide viewing angle, the 23.8 inch high resolution monitor gives a rich representation of the display image.

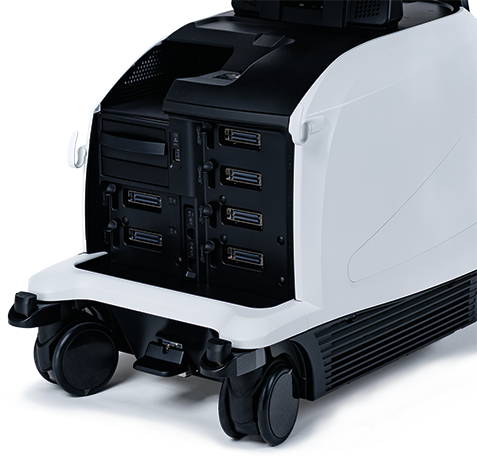

Mobility

Lightweight, stable and easy to move. Transports with ease from room to room.

Programmable Presets

Fully customizable presets for each user.
