ARIETTA 650DI Cardiovascular

Fujifilm’s ARIETTA 650DI new-generation ultrasound system featuring technologies to achieve “DeepInsight” for Cardiovasular ultrasound in a system designed for your practice.

Contact Us

The Arietta 650DI’s DeepInsight brings the performance and value to you need for your Cardiovascular patients. DeepInsight technology provides image enhancement, extracting only the necessary information from a vast amount of data, delivering clearer representations of fine and complex tissue structures that could, until now, have been masked by noise. In addition, the ergonomic design with innovative functions that support accurate and safe ultrasound diagnosis and state-of-the-art applications to provide you with detailed diagnostic information and enhance your Cardiovascular imaging.

Dedicated Cardiovascular Ultrasound Solutions For Cardiologists

For precise cardiovascular ultrasound imaging, the ARIETTA 65oDI includes:

Advanced and unique probes



Contact Us

Transducers

Designed by cardiologists… For cardiologists

The ARIETTA 650DI has many advanced and unique probes that fully cover the expanding range of patients that benefit from a more complete ultrasound diagnosis.

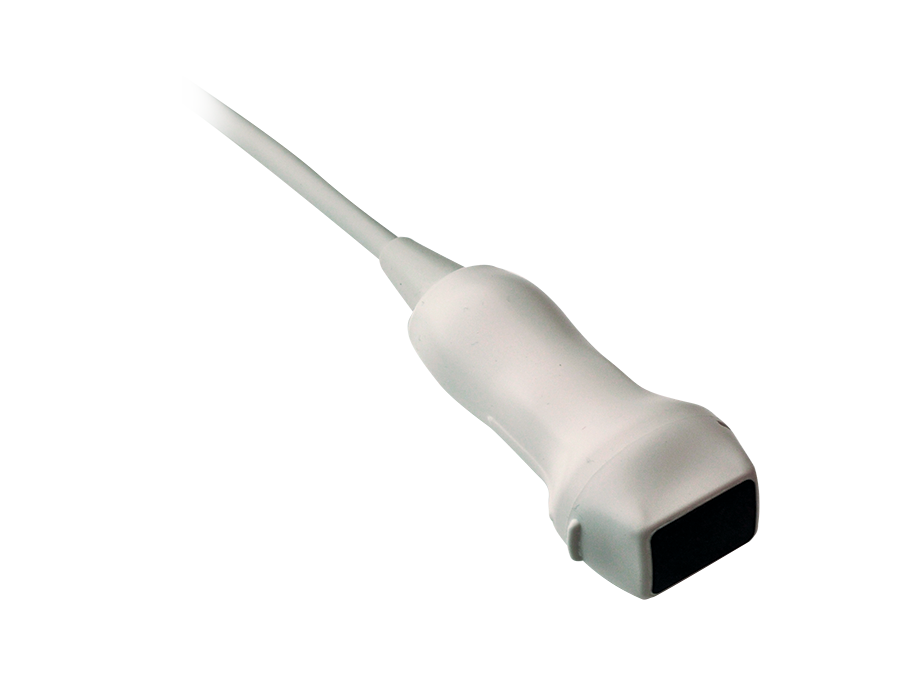

S11
S31
S42
S3ESEL
L441
L64
L34
L55
L53K

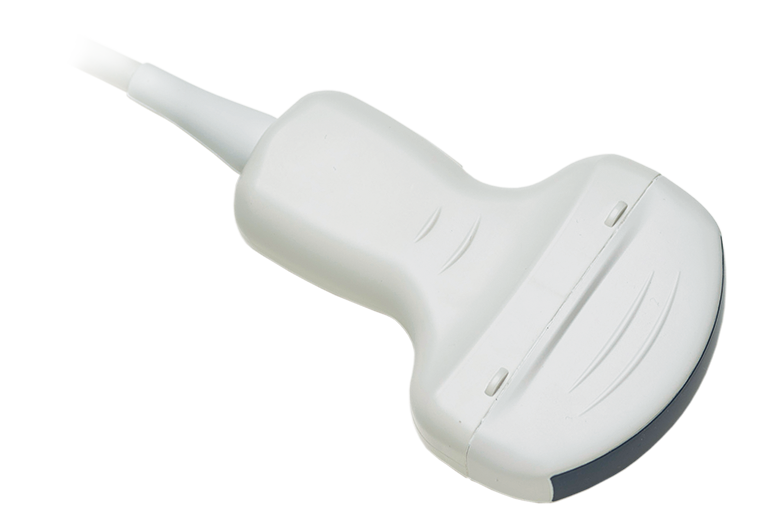

C252
C35

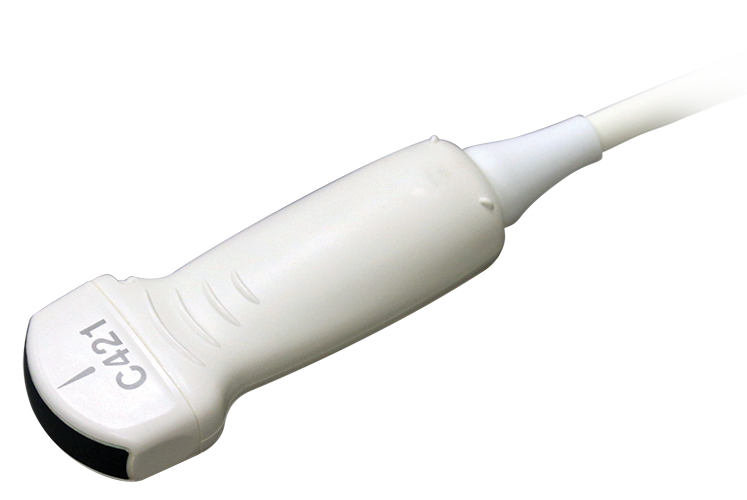

C421
C23

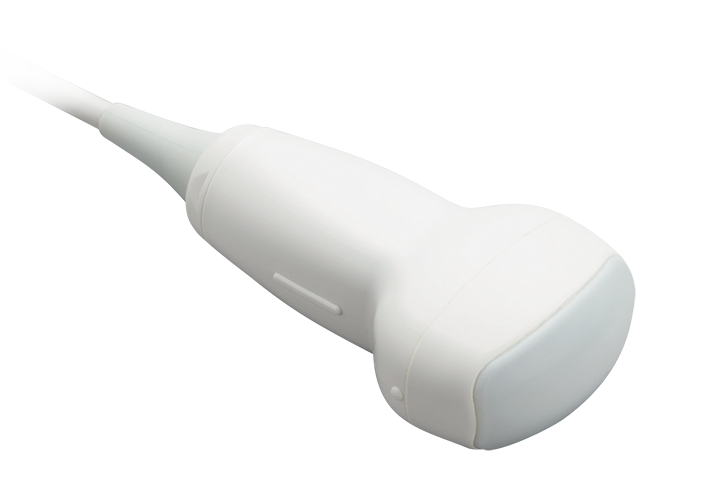

VC35
C41V1

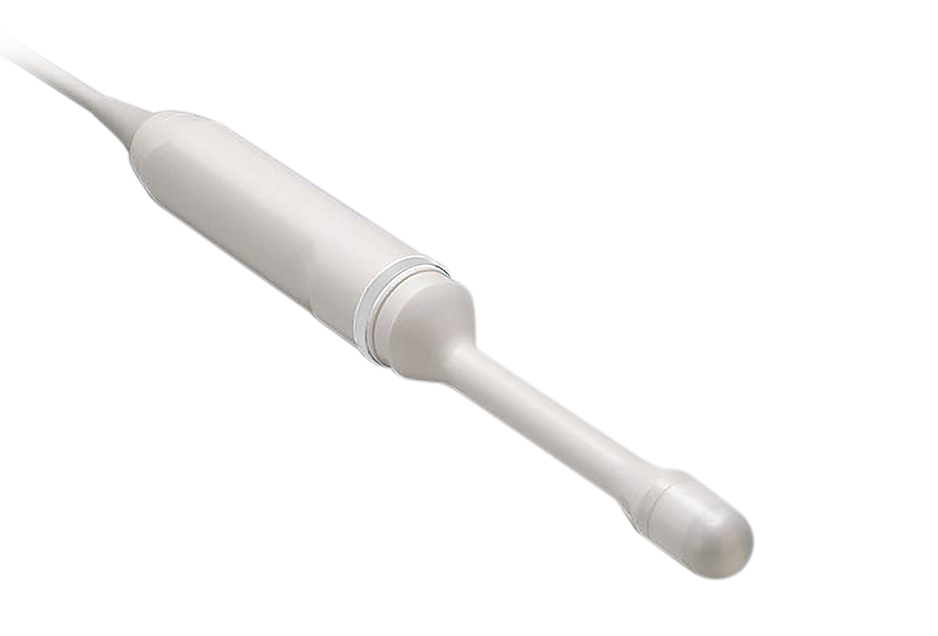

VC41V
C41V

Single Crystal Adult Transducer

  • Array Type: Phased
  • Frequency Range: 5 – 1 MHz
  • Scan Angle: 90° FOV

Abdomen, Cardiology, Pediatric Transducer

  • Array Type: Phased
  • Frequency Range: 9 – 2 MHz
  • Scan Angle: 90° FOV

Neonatal Transducer

  • Array Type: Phased
  • Frequency Range: 14 – 3 MHz
  • Scan Angle: 100° FOV

Adult TEE

  • Frequency Range: 8 – 2 MHz
  • Scan Angle: 100° FOV
  • Diameter: 15.5mm

Vascular Transducer

  • Array Type: Linear
  • Frequency Range: 12 – 2 MHz
  • Scan Width: 38 mm Width

Breast, Small Parts, Thyroid Transducer

  • Array Type: Linear
  • Frequency Range: 18 – 5 MHz
  • Scan Width: 38 mm Width

Vascular Transducer

  • Array Type: Linear
  • Frequency Range: 7 – 3 MHz
  • Scan Width: 38 mm Width

Breast, Small Parts, Thyroid Transducer

  • Array Type: Linear
  • Frequency Range: 13 – 5 MHz
  • Scan Width: 50 mm Width

Hockey-Stick Transducer

  • Array Type: Linear
  • Frequency Range: 15 – 3 MHz
  • Scan Width: 25 mm

Single Crystal Abdomen Transducer

  • Array Type: Convex
  • Frequency Range: 6 – 1 MHz
  • Scan Width: 50 mm Radius
  • Scan Angle: 70° FOV

Abdomen Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 2 MHz
  • Scan Width: 50 mm Radius
  • Scan Angle: 70° FOV

Abdomen Transducer

  • Array Type: Convex
  • Frequency Range: 12 – 3 MHz
  • Scan Width: 21 mm Radius
  • Scan Angle: 85° FOV

Abdomen Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 2 MHz
  • Scan Width: 50 mm Radius
  • Scan Angle: 70° FOV

3D/4D Abdomen, Obstetrics Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 2 MHz
  • Scan Width: 46 mm Radius
  • Scan Angle: 72° FOV

Transvaginal Transducer

  • Array Type: Convex
  • Frequency Range: 10 – 2 MHz
  • Scan Width: 10 mm Radius
  • Scan Angle: 200° FOV

3D/4D Transvaginal Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 2 MHz
  • Scan Width: 10 mm Radius
  • Scan Angle: 145° FOV

Transrectal Biopsy & Guidance Transducer

  • Array Type: Convex
  • Frequency Range: 8 – 4 MHz
  • Scan Width: 10 mm Radius
  • Scan Angle: 200° FOV

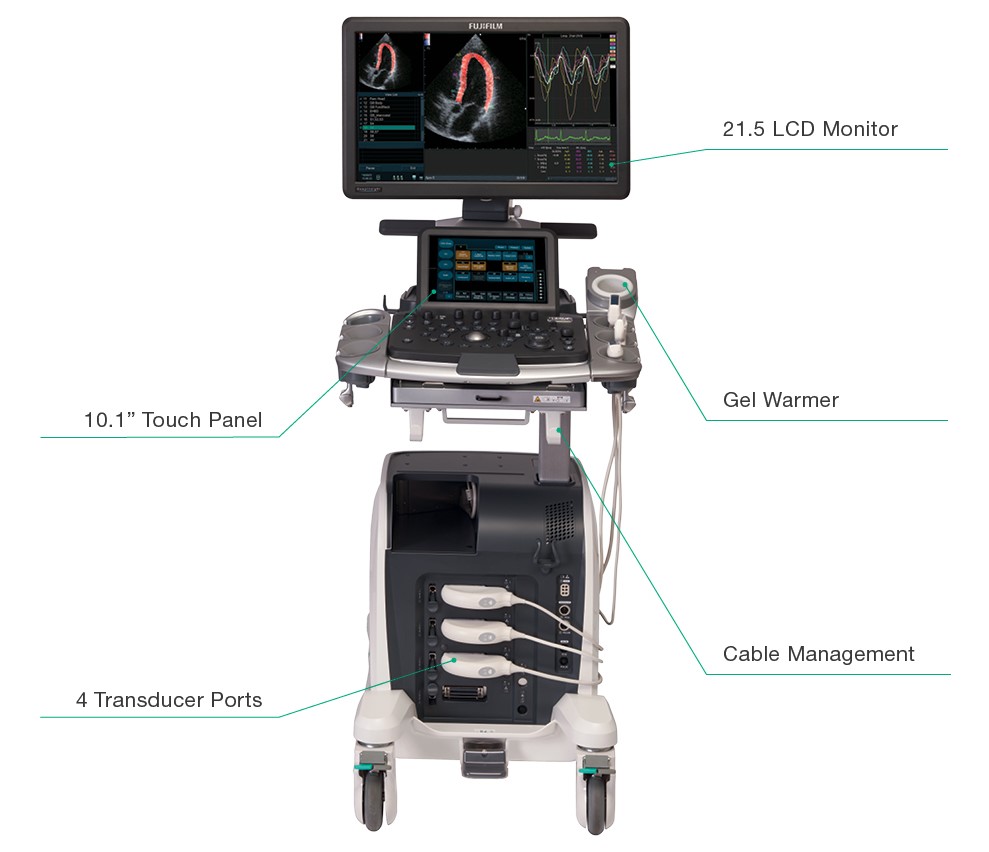

System Features

Designed to provide maximum simplicity, user efficiency, and portability. From its compact footprint to its intuitive, time-saving user interface, the ARIETTA 650DI was engineered for the increasing workloads of today’s busy cardiology offices.

Ergonomics
Protocol Assistant
Efficient Workflow
LCD Monitor
Programmable Presets
Mobility

Ergonomics

Swiveling, height-adjustable control panel drops to 40” from the floor to facilitate lower extremity exams. Monitor mounted on a separately articulating arm for wide range of motion.

Protocol Assistant

Provides customizable automation to assist users by performing routine steps such as annotation and mode changes.

Efficient Workflow

Utilize the pre-set configurations, easy transducer selection, and automated image optimization, all with the touch of just a few buttons.

LCD Monitor

With a high contrast ratio and wide viewing angle, the 21.5 inch LCD monitor gives a rich representation of the display image.

Programmable Presets

Fully customizable presets for each user.

Mobility

Lightweight, stable and easy to move. Transports with ease from room to room.
