Cardiovascular Ultrasound – LISENDO 880
Cardiovascular Ultrasound
Enhanced diagnostics. Better outcomes.
Fujifilm Healthcare understands that cardiologists demand excellence for all their patients — from fetal to adult and the equipment they depend on. Fujifilm Healthcare's dedication to cardiovascular ultrasound provides outstanding ultrasound technology, professional support, and the specialized tools necessary to best perform comprehensive real-time ultrasound exams.
Overview
Adult Echo LISENDO 880
Advanced diagnostics for the most critical decisions
Recognized for our outstanding image quality, intuitive use of cutting-edge technology and unique clinical tools, Fujifilm Healthcare remains the standard in the field of adult echo.
When it comes to heart disease, a prompt and accurate diagnosis is often vital. Early detection remains crucial, and Fujifilm is dedicated to help clinicians achieve that with highly specialized solutions on one system that detects early signs of structural abnormalities, 3D/4D visualization of cardiac functions, heart failure and quantifiable tools for advanced hemodynamic analysis.
With the LISENDO 880 the new vision for cardiovascular ultrasound is here.
DEDICATED CARDIOVASCULAR ULTRASOUND SOLUTIONS FOR CARDIOLOGISTS
For precise cardiovascular ultrasound imaging, the LISENDO 880 includes:
Advanced and unique probes
Transducers
Designed by cardiologists… For cardiologists
The LISENDO 880 has many advanced and unique probes that fully cover the expanding range of patients that benefit from a more complete ultrasound diagnosis.
C35
High Frequency Fetal Transducer
- Array Type: Convex
- Frequency Range: 8 - 2 MHz
- Scan Angle: 70° FOV
C252
Single-crystal Convex Transducer
- Array Type: Convex
- Frequency Range: 6 - 1 MHz
- Scan Width: 50 mm Radius
- Scan Angle: 70° FOV

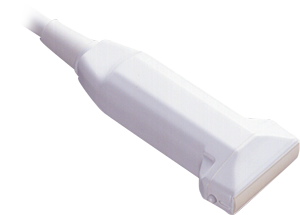

L34
Small Parts, Abdomen Transducer
- Array Type: Linear
- Frequency Range: 7 - 3 MHz
- Scan Width: 38 mm Width
- Smart Connector
L53K
Hockeystick Transducer
- Array Type: Linear
- Frequency Range: 15 - 3 MHz
- Scan Width: 25 mm
L64
Breast, Small Parts, Thyroid Transducer
- Array Type: Linear
- Frequency Range: 18 - 5 MHz
- Scan Width: 38 mm Width
- Smart Connector

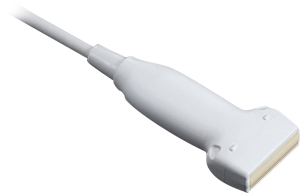

L441
Breast and Small Parts Transducer
- Array Type: Linear
- Frequency Range: 12 - 2 MHz
- Scan Width: 38 mm Width
- Smart Connector
S3ESEL
Adult TEE Transducer
- Array Type: Phased
- Frequency Range: 8 - 2 MHz
- Scan Angle: 90° FOV
- Diameter: 15.5 mm
S31
Pediatric Cardiology Transducer
- Array Type: Sector
- Frequency Range: 9 - 2 MHz
- Scan Angle: 90° FOV
- Smart Connector
S42
Pediatric Cardiac Transducer
- Array Type: Sector
- Frequency Range: 14 - 3 MHz
- Scan Angle: 90° FOV
S121
Single Crystal Adult Transducer
- Built to withstand the rigors of daily use
- Multi-layered crystal technology
- Exceptional near and far field resolution
- Broadband design 1-5MHz
UST-2265-2
Cardiac CW Doppler Transducer
- Frequency Range: 2 MHz
UST-2266-5
Independent Transducer
- Frequency Range: 5 MHz
MXS1
3D TTE
- Array Type: Sector
- Frequency Range: 5 - 1 MHz
- Scan Angle: 90° FOV
MXT1
3D TEE
- Array Type: Sector
- Frequency Range: 10 - 1 MHz
- Scan Angle: 90° FOV
SML44
CMUT
- Array Type: Linear
- Frequency Range: 22 - 2 MHz
- Scan Width: 38mm
Imaging Features
Vector Flow Mapping (VFM)
Vector Flow Mapping is a technique to visualize blood flow and flow velocity in the heart, which enables easy acquisition of vector distributions of cardiac and vascular lumens obtained by B-Mode color Doppler. VFM evaluates hemodynamics in the heart in a whole new way, identifying flow direction, vorticity, energy loss, wall stress, and relative pressure with one loop capture.
LV eFLOW
LV eFLOW is a noninvasive, high-definition blood flow imaging mode which drastically improves visualization of the endocardial borders in the left ventricle with higher sensitivity and resolution without using contrast. LV eFLOW may change a technically difficult study into a diagnostic study with the touch of a button.
eFocusing
The eFocusing transmission and reception technology significantly improves S/N and reduces focal dependency. The outstanding clarity of clinical images is performed from near to far field with excellent penetration at higher frequencies.
Dual Gate Doppler (DGD)
Enables observation of Doppler waveforms from two separate locations simultaneously. Measurements such as the E/e’ ratio, isovolumetric contraction and relaxation times and evaluation of dyssynchrony in septal and lateral walls, can be obtained during the same heart cycle, eliminating beat-to-beat variation.
4D LV, RV and MV Analysis
Provides a comprehensive evaluation of the left and right ventricles including volumes and strain analysis along with a dynamic analysis of the anatomical structures of the mitral valve, annulus and the closure line of the two leaflets.
System Features
Designed to provide maximum simplicity, user efficiency, and portability. From its compact footprint to its intuitive, time-saving user interface, the LISENDO 880 was engineered for the increasing workloads of today’s busy echo labs.
Hemodynamic Structural Intelligence (HDSI)
A sophisticated cardiac measurement package provides a collection of single touch automated analysis tools of complex cardiac functions to which measurement accuracy has been improved with the addition of a vast knowledge-based data bank. The resultant ease-of-use and exam consistency significantly improve throughput, streamlining workflow.
Ergonomics
Tilt, swivel, and height adjustable.
Protocol Assistant
Prior fixed examination protocols and imaging conditions can be registered. Button operations can be reduced significantly to help support efficiency in the echo lab.
Efficient Workflow
Start scanning with a single touch and automatically optimize the image with a single tap. The LISENDO 880 is efficient and proficient.
OLED Monitor
With a high contrast ratio and wide viewing angle, the 22-inch OLED monitor displays true black so the contrast resolution can be achieved. It is the ideal monitor choice for diagnostic ultrasound, with the highest quality grayscale display.
Hygienic
Smooth surfaces for easy wipe-down. Compatible with commonly used disinfectants.
Clinical Images
Dual Gate Doppler (DGD)
Free Angular M-mode (FAM)
LV eFLOW-Virtual Contrast
Strain-2DTT
Stress Echo
Vascular
